Measurement Points

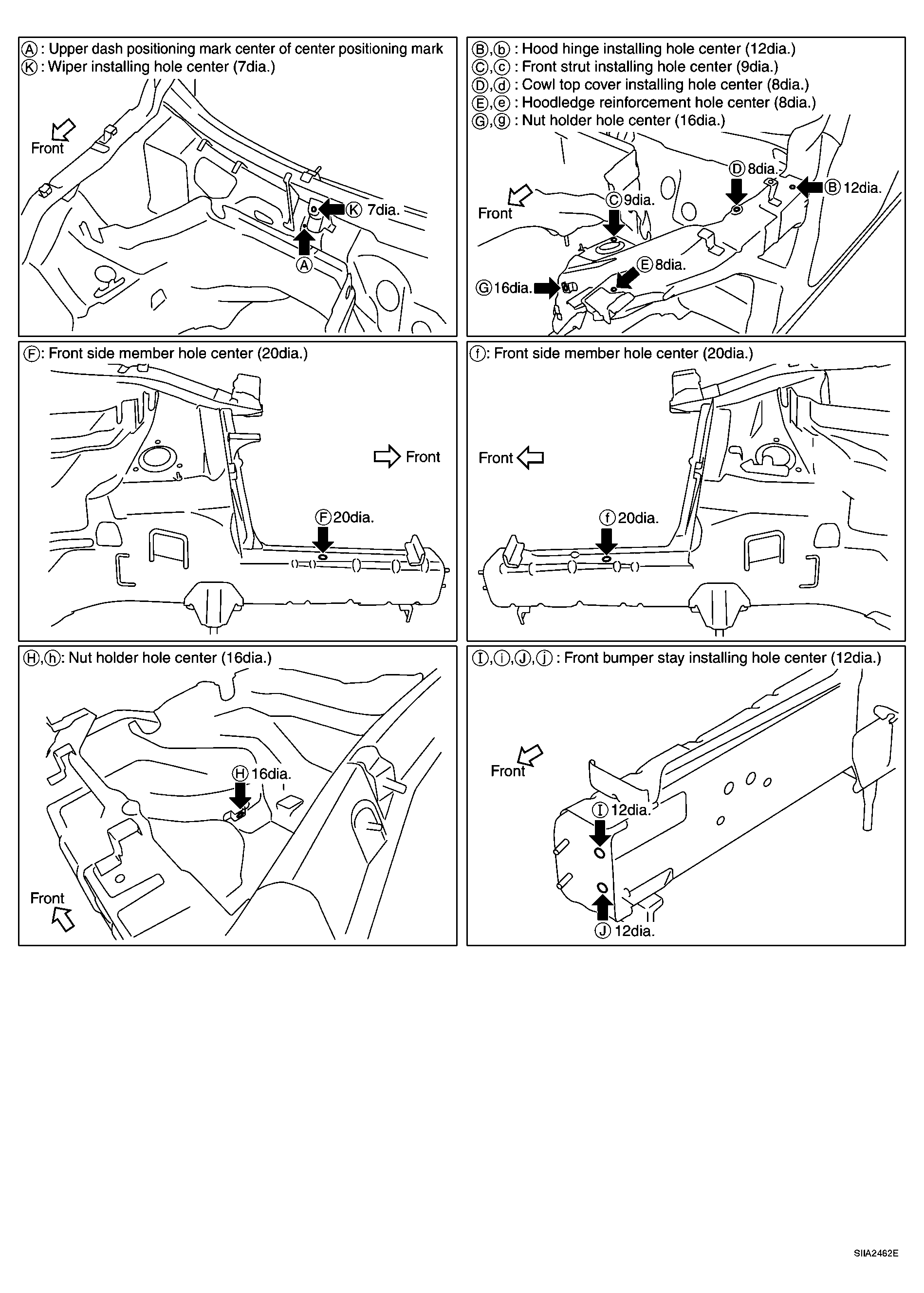

Fig 1: Identifying Measurement Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
