Engine Compartment: Measurement

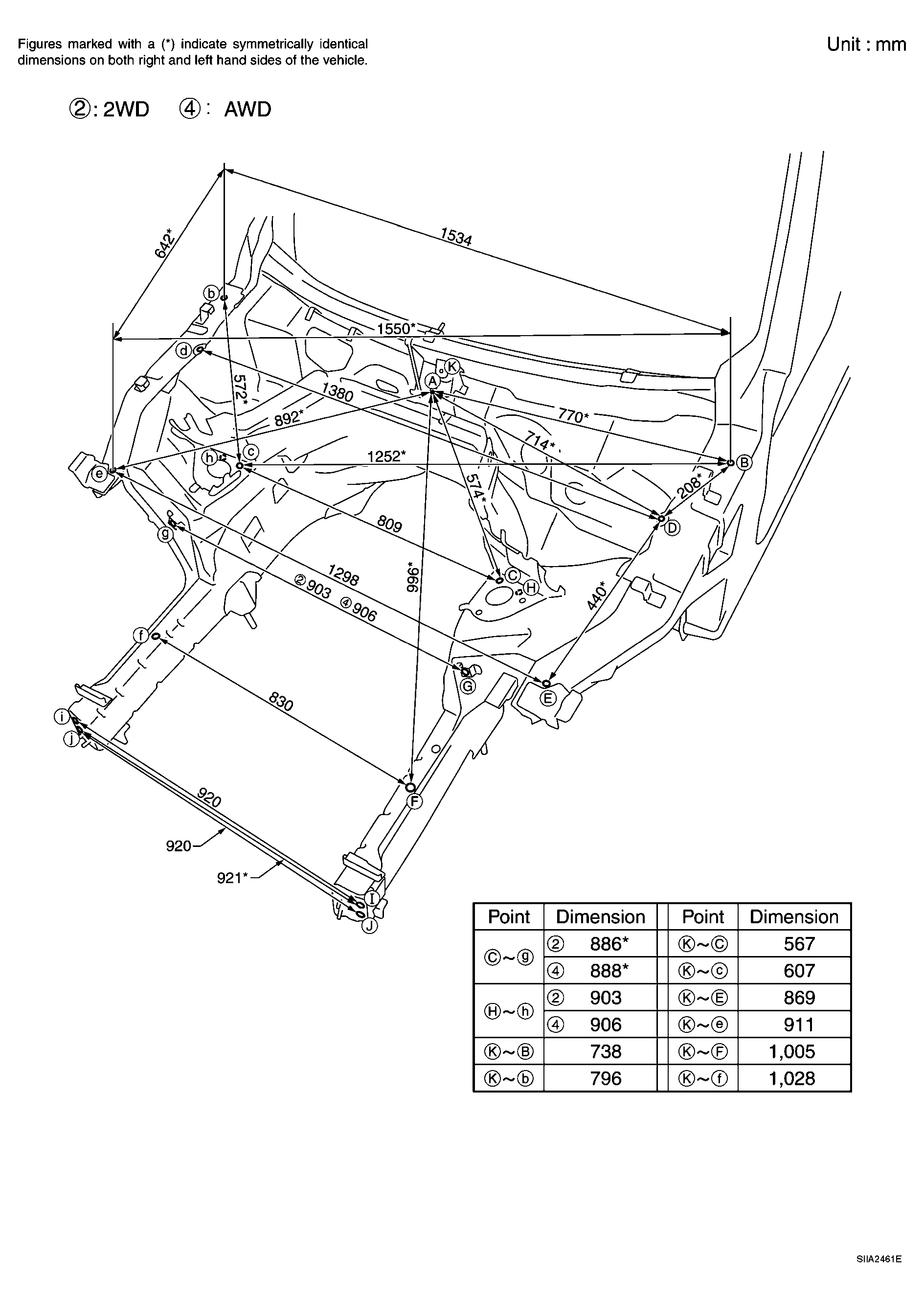

Fig 1: Identifying Engine Compartment Measurements
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
