Front Pillar

• Work after hoodledge reinforcement has been removed.

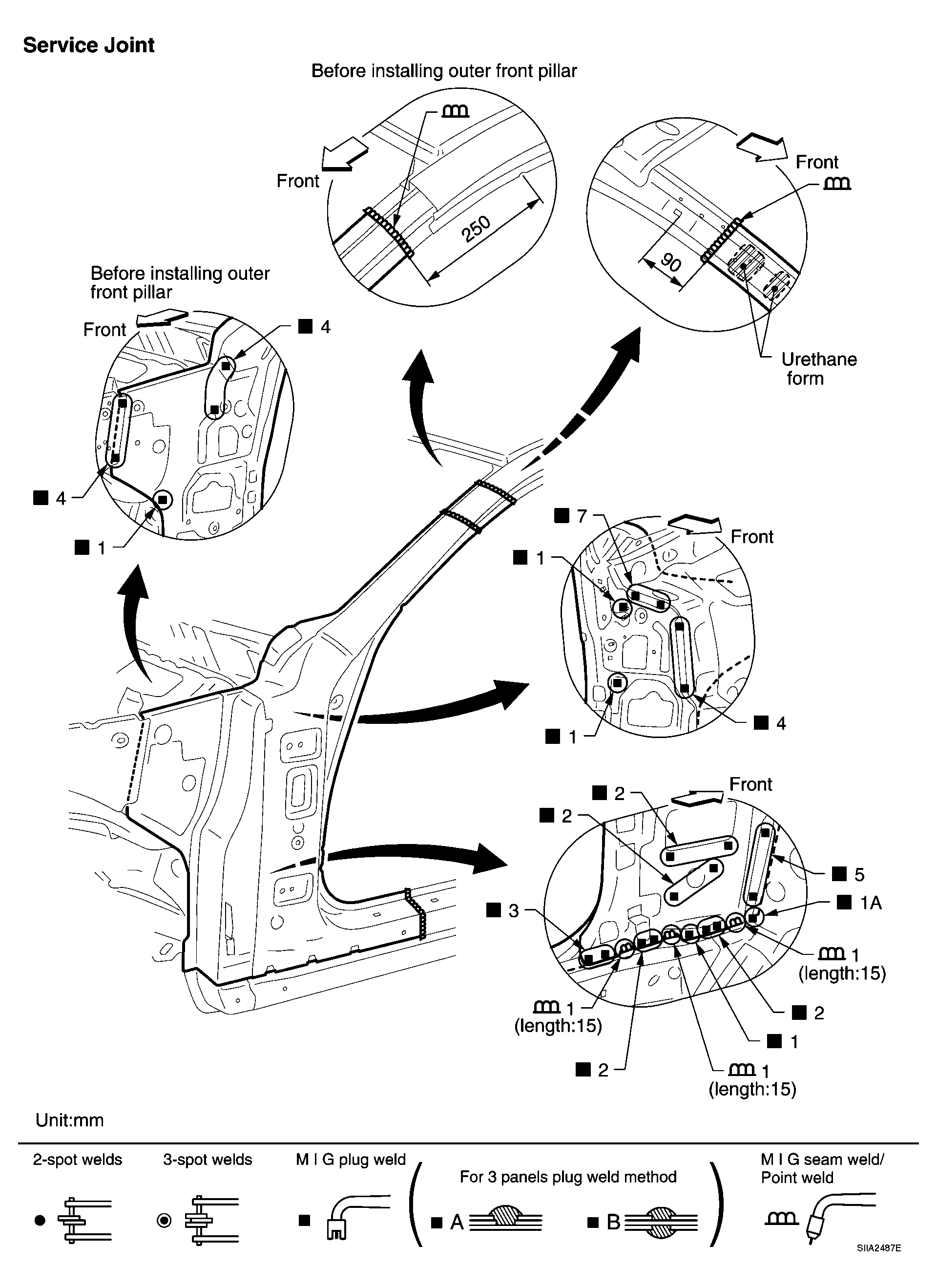

Fig 1: Identifying Service Joint - Front Pillar (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

• Side body assembly (LH)
• Inner roof side rail (LH)
• Upper rear hoodledge (LH)

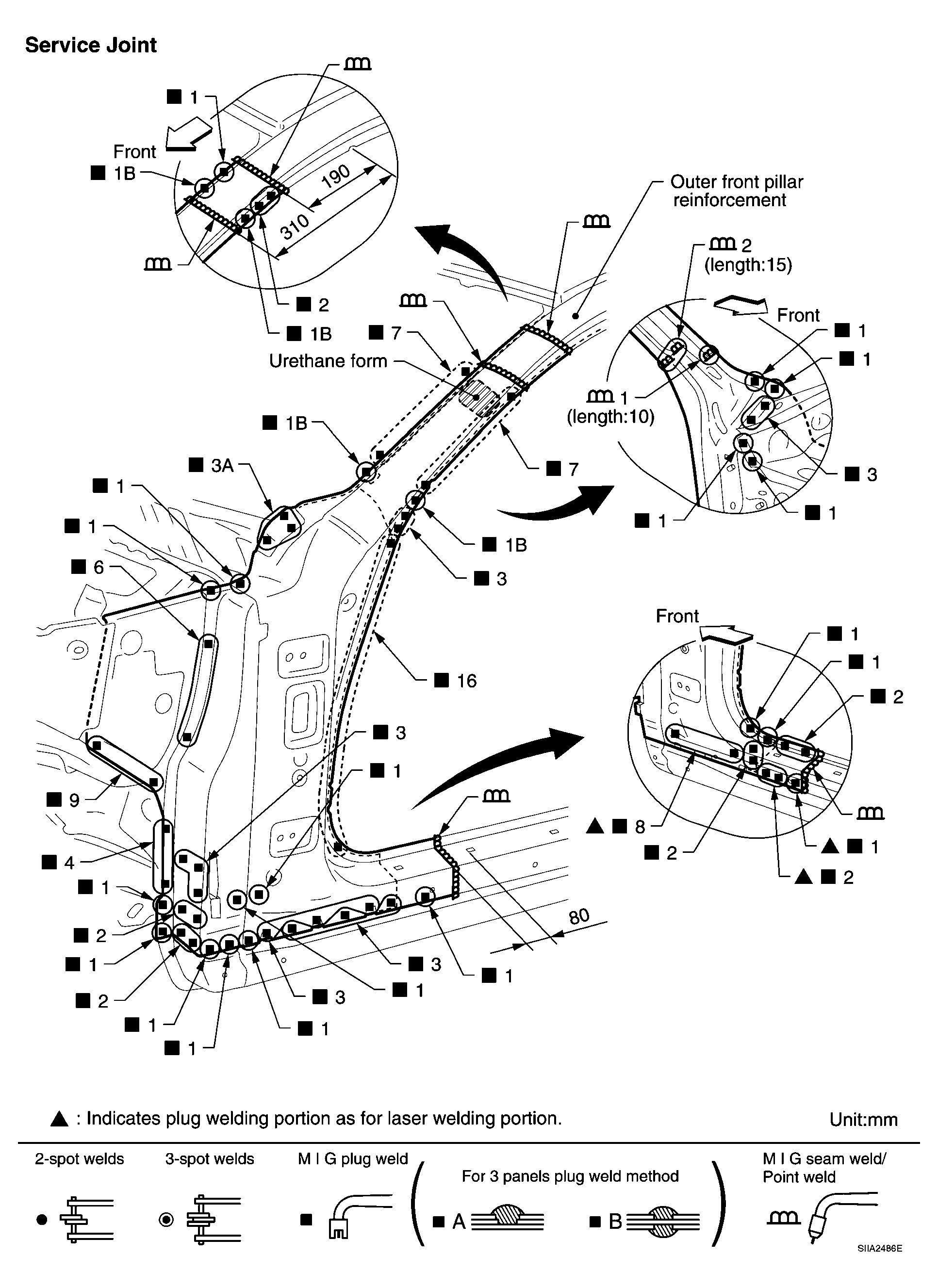

Fig 2: Identifying Service Joint - Front Pillar (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
