Replacement Operations: HOODLEDGE

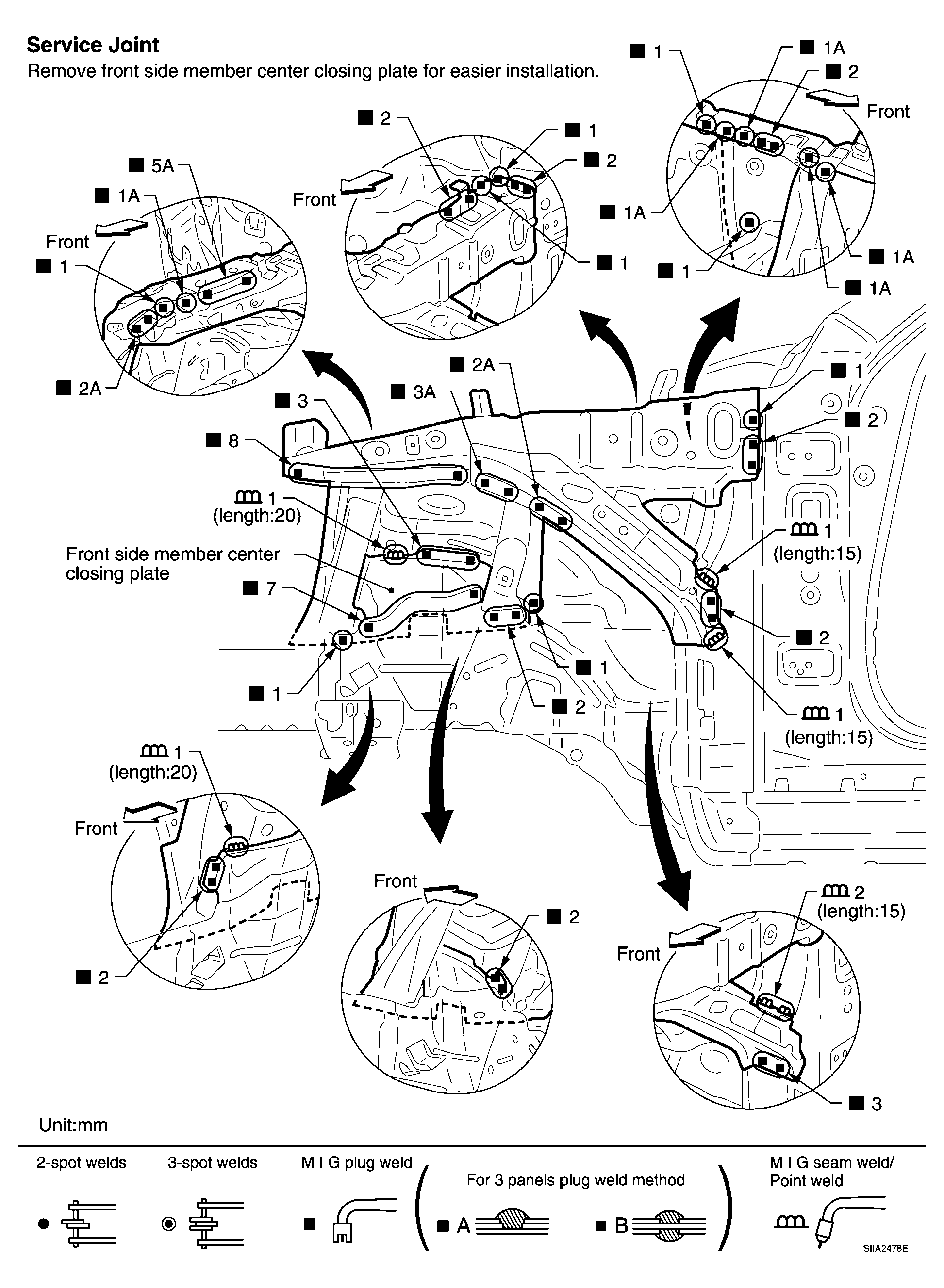

Fig 1: Identifying Service Joint - Hoodledge (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Change parts

• Front strut housing (LH)
• Upper front hoodledge (LH)
• Hoodledge reinforcement (LH)

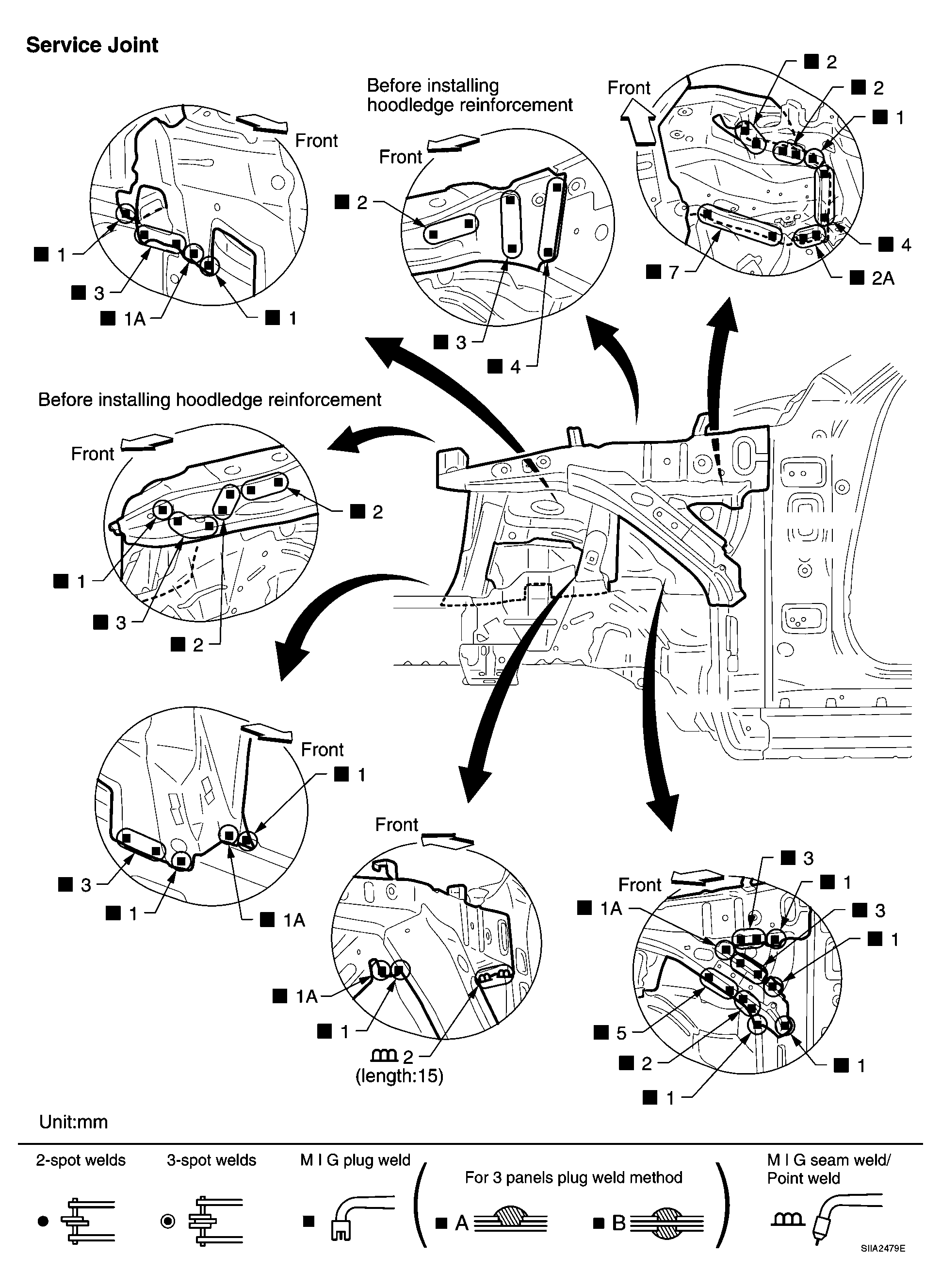

Fig 2: Identifying Service Joint - Hoodledge (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
