Rear Panel

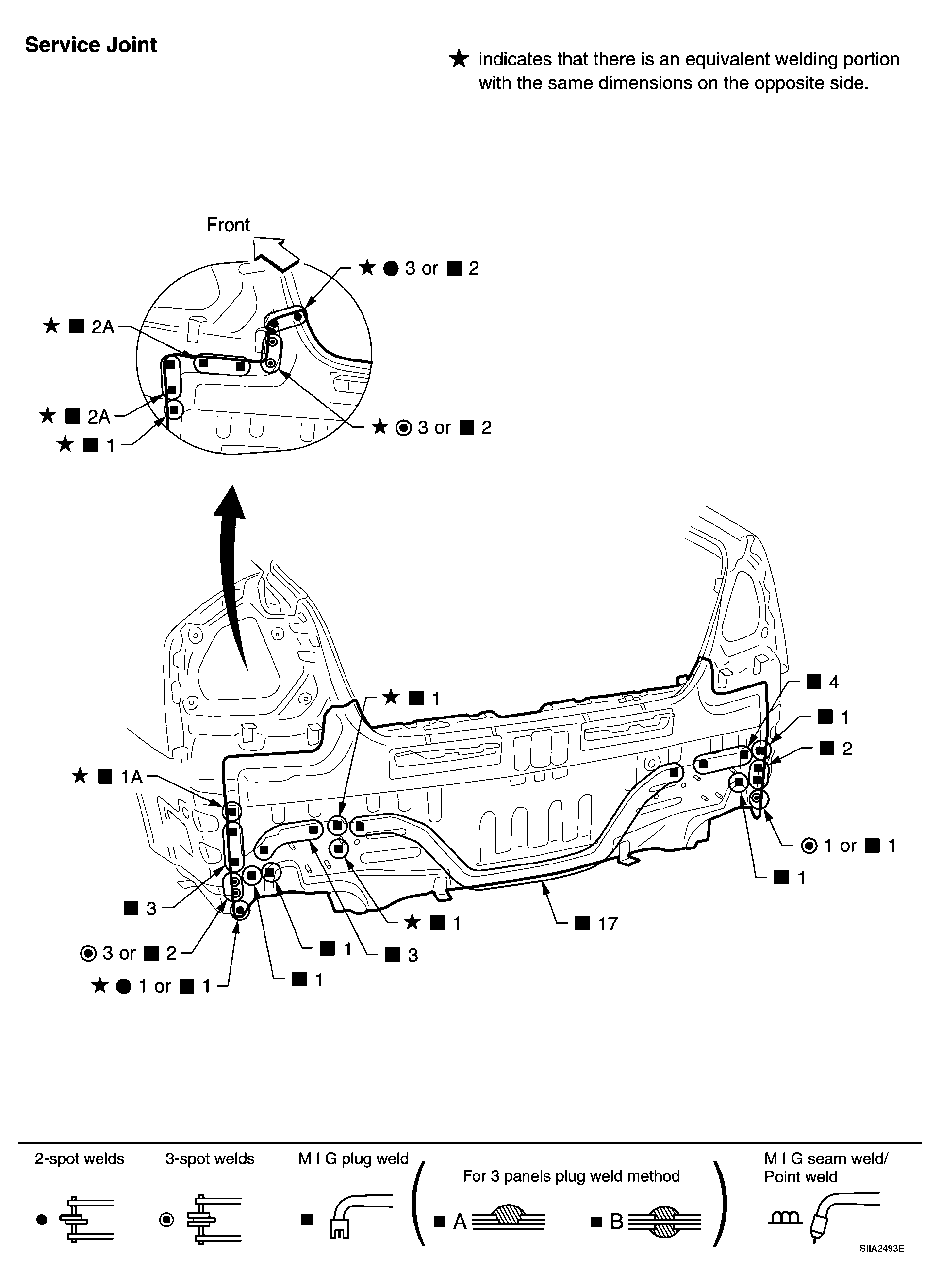

Fig 1: Identifying Rear Panel Service Joints
G04145553Courtesy of NISSAN MOTOR CO., U.S.A.
