Component Structure

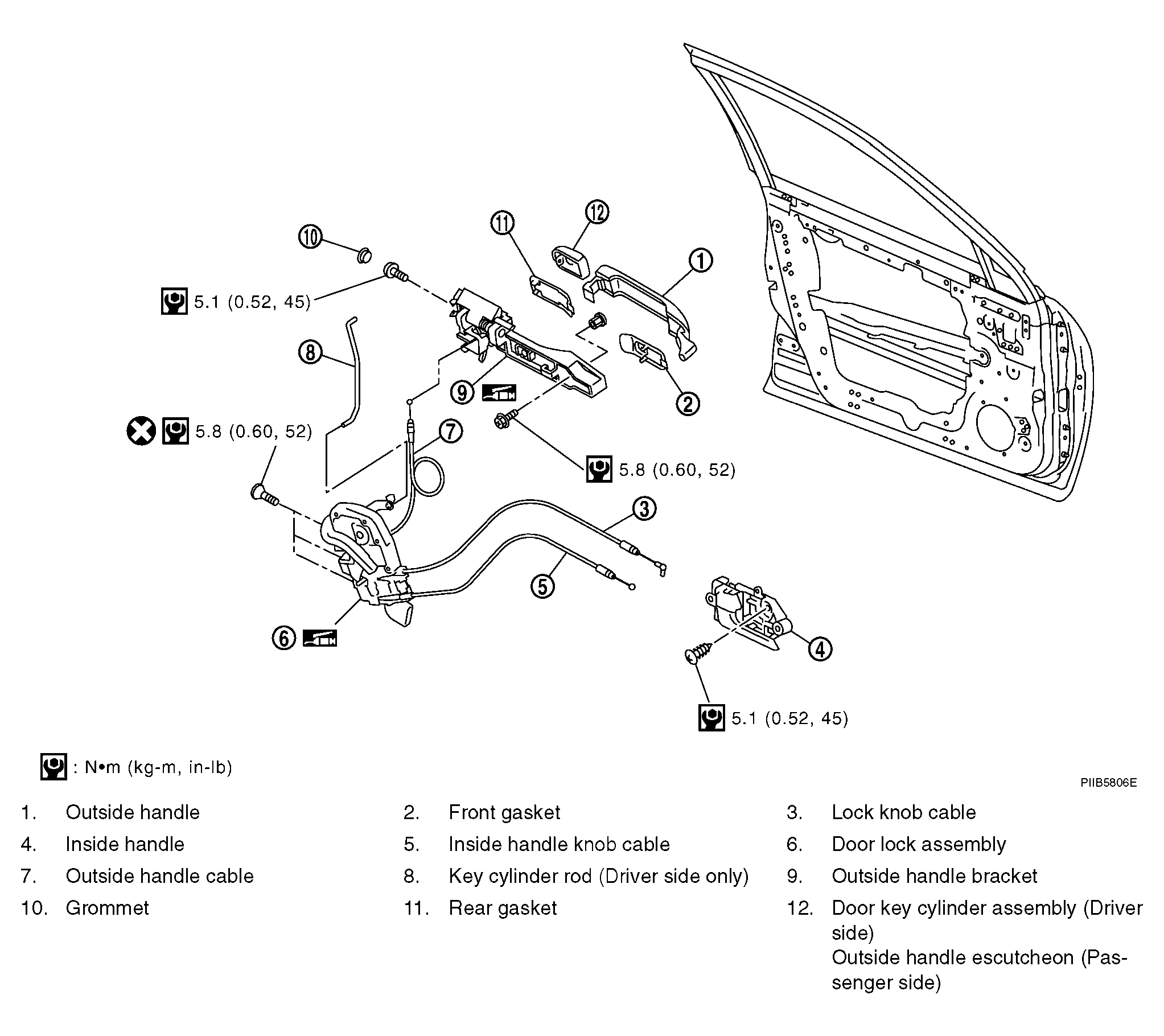

Fig 1: Exploded View Of Front Door Lock
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
