CONSULT-II Inspection Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector (1).

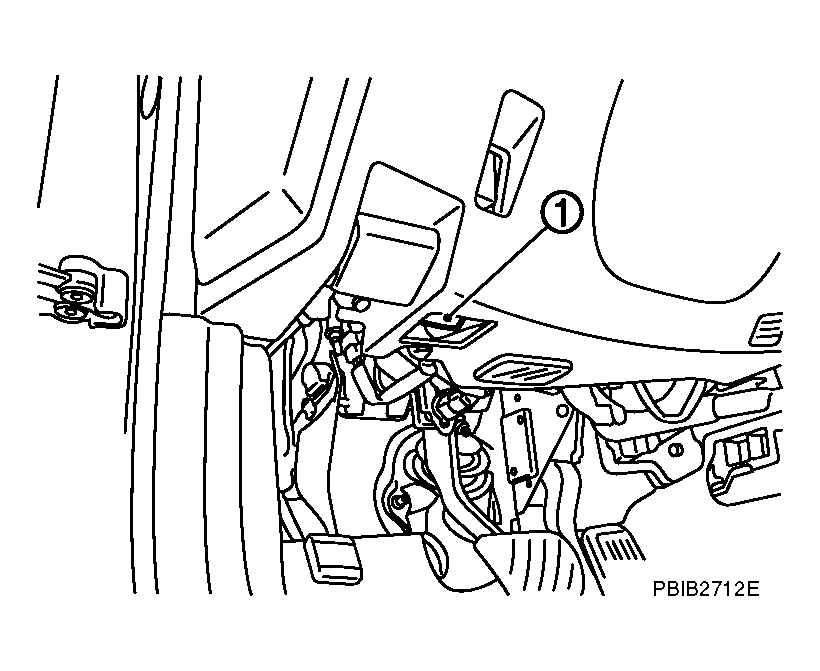

    Fig 1: Identifying Data Link Connector
    G04145671Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "REAR DEFOGGER".
    Fig 4: CONSULT-II Display - Rear Defogger
    G04145674Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST" are available.
Fig 5: Consult-II SELECT DIAG MODE Display Screen
G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
