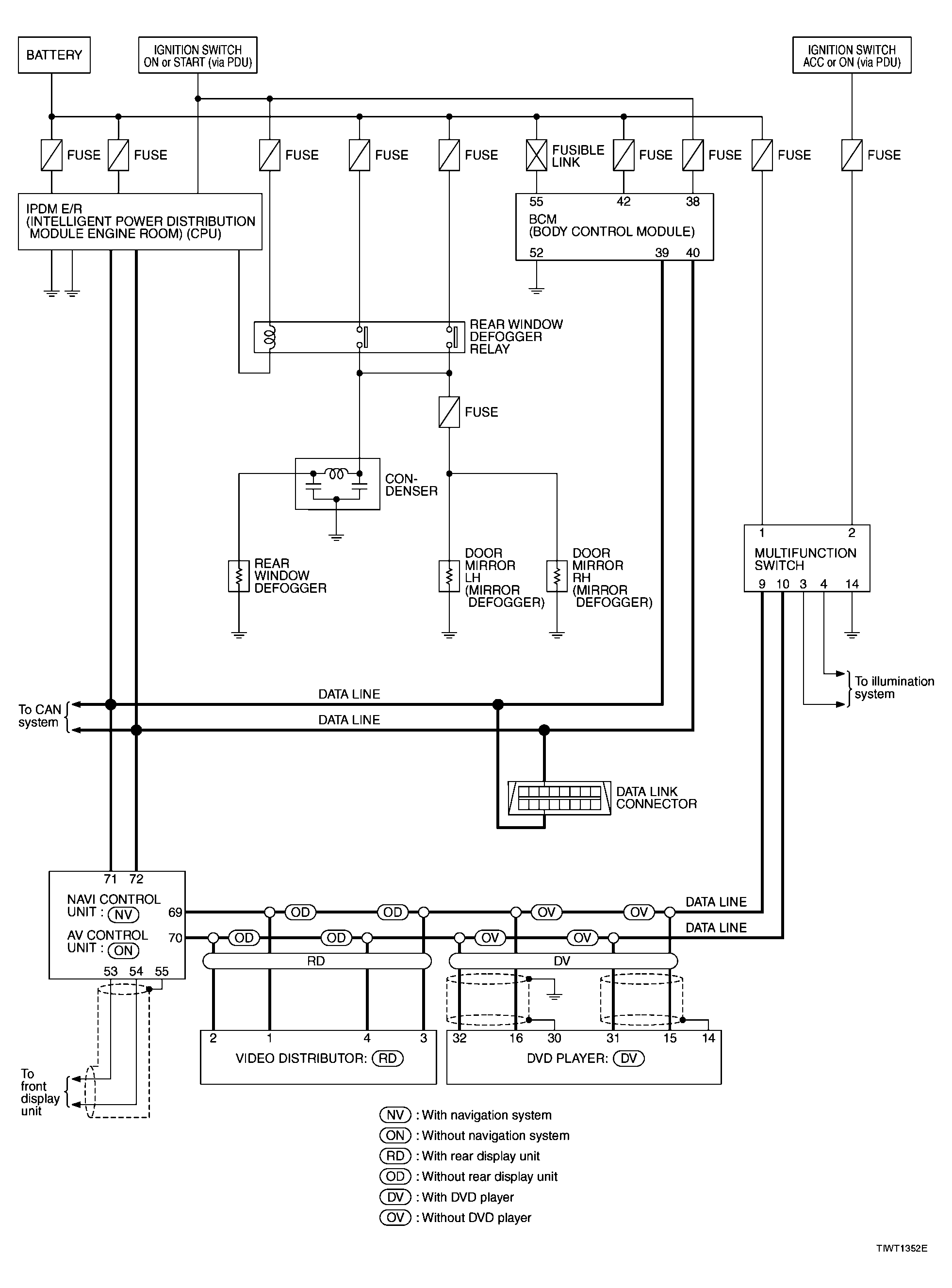

Rear Window Defogger: Schematic
Fig 1: CAN Communication Unit - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
