Parking Brake Control: Components

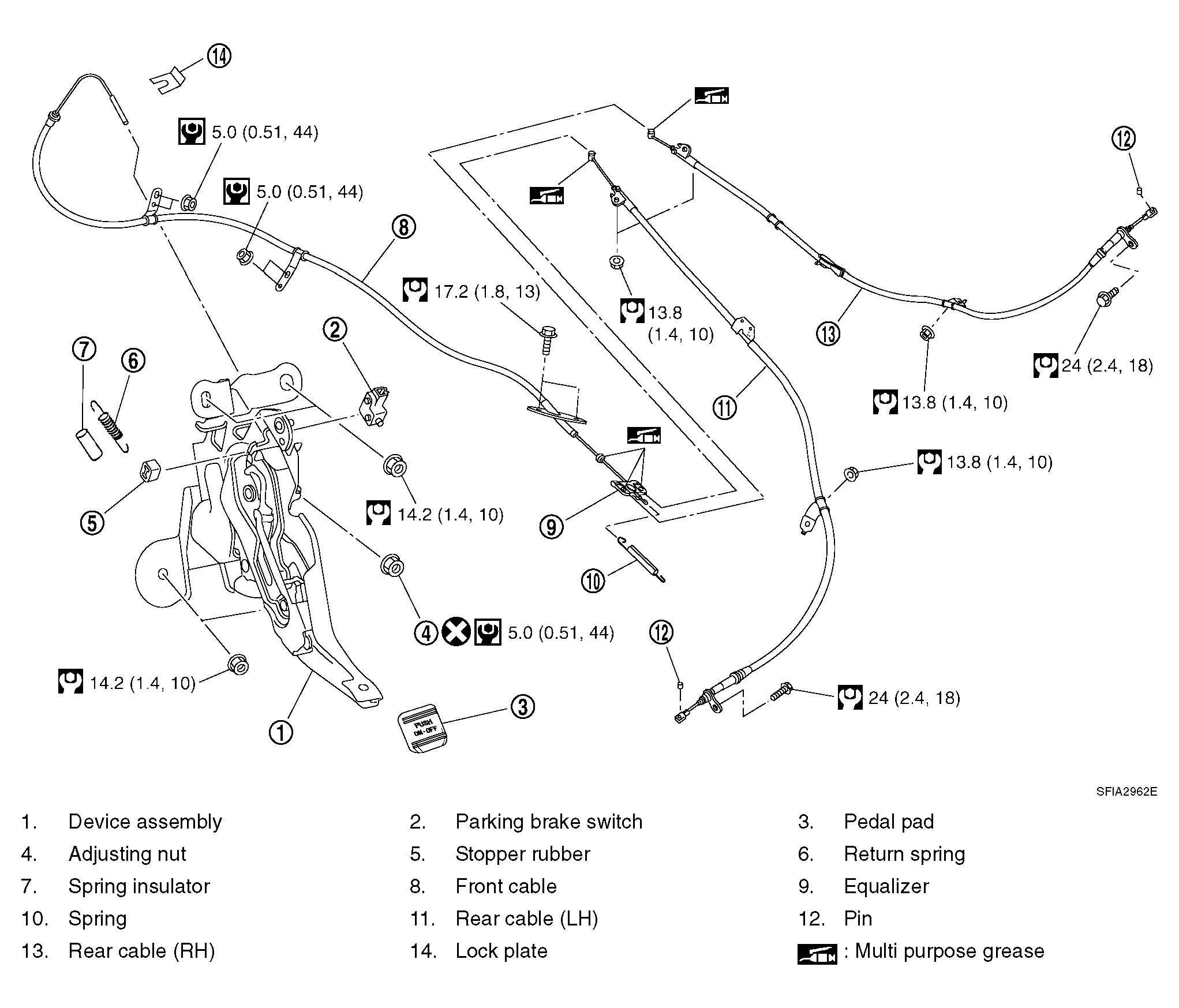

Fig 1: Parking Brake Control Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GENERAL INFORMATION for symbol marks except in the above.
