VK45DE Engine Models: Notes

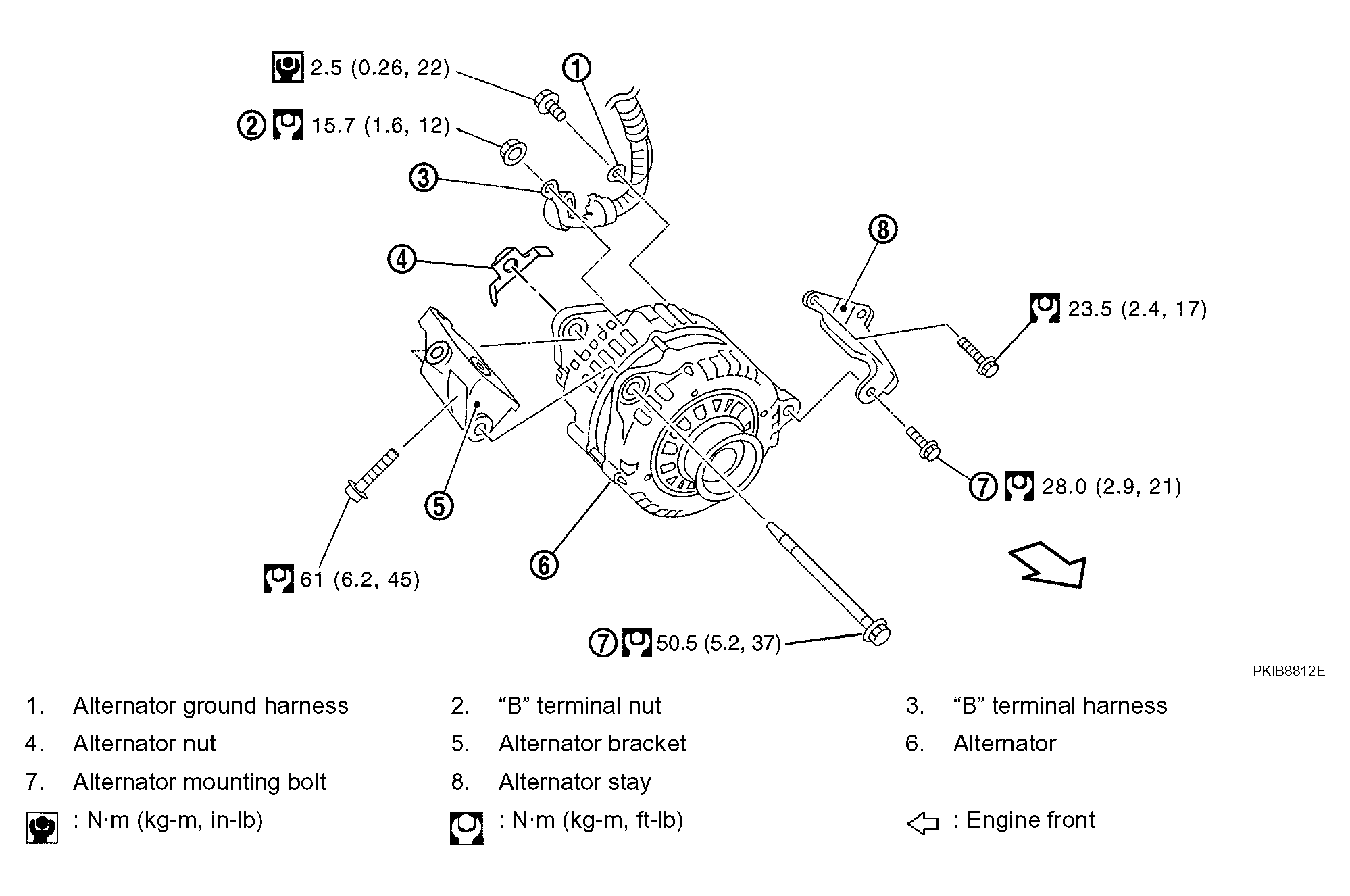

Fig 1: Alternator Replacement Components With Torque Specifications (VK45DE)
G04140036Courtesy of NISSAN MOTOR CO., U.S.A.
