Vacuum Hose Drawing

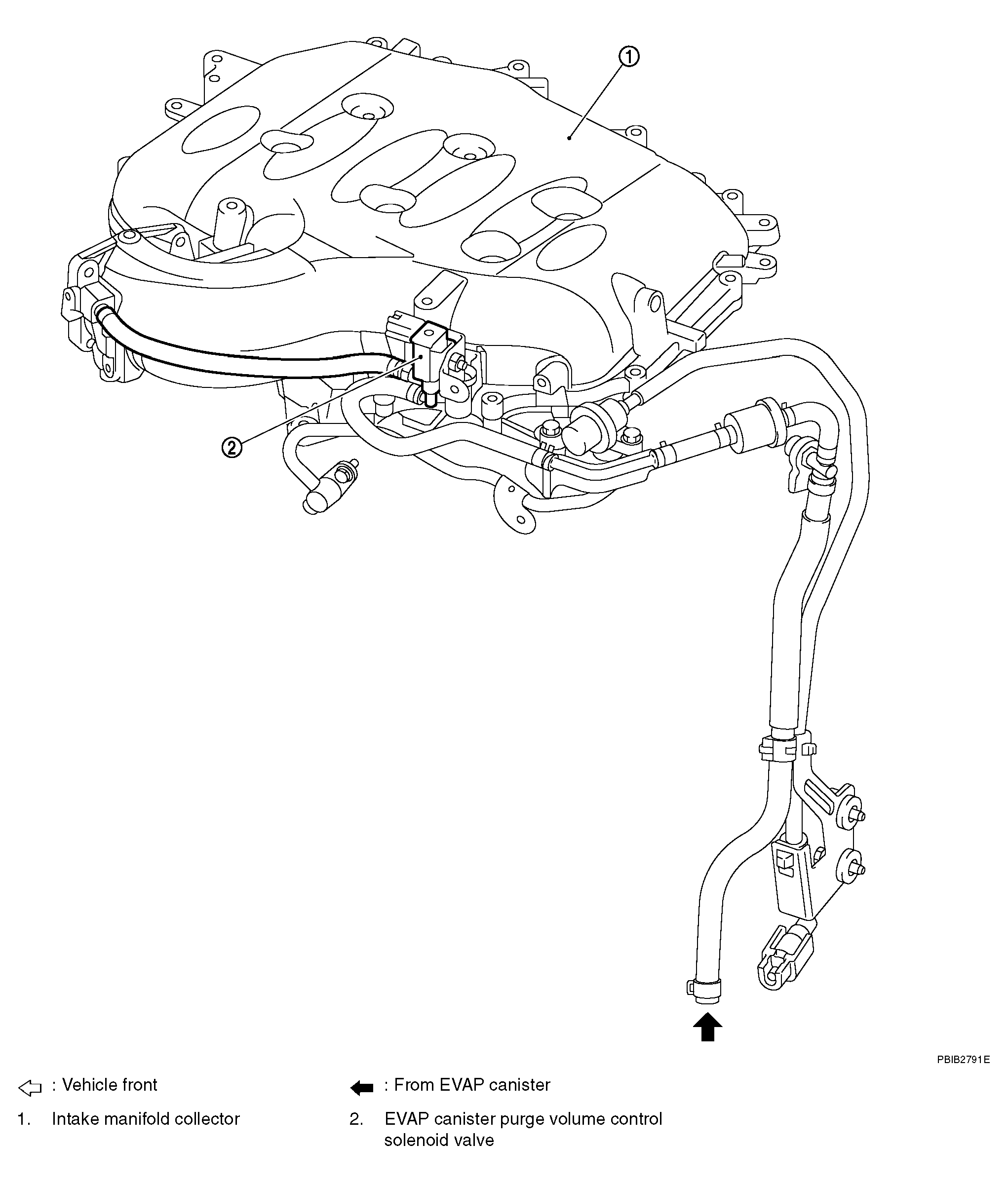

Fig 1: Identifying Vacuum Hose Drawing
G04138246Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.

Refer to , "SYSTEM DIAGRAM " for Vacuum Control System.
