Battery Current Sensor

Reconnect harness connectors disconnected.
Disconnect battery negative cable (1).
- <-: To body ground
Install jumper cable (A) between battery negative terminal and body ground.
Turn ignition switch ON.

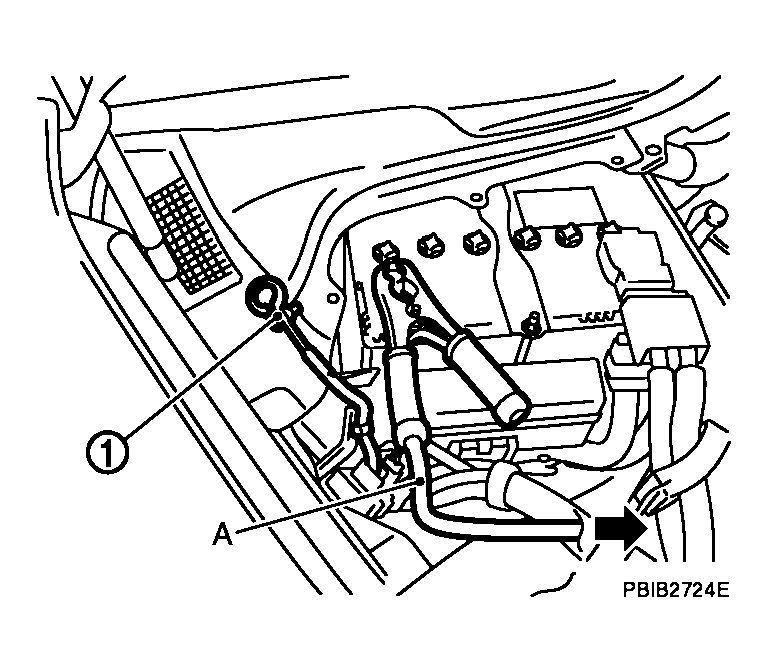

Fig 1: Installing Jumper Cable (A) Between Battery Negative Terminal And Body Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
Check voltage between ECM terminal 71 (battery current sensor signal) and ground.
Voltage: Approximately 2.5V
If NG, replace battery negative cable assembly.

Fig 2: Checking Voltage Between Terminal 71 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
