Engine Control System - VK45DE - M45 - Introduction And DTC Index
>>
Basic Service Procedure
>>
Idle Mixture Ratio Adjustment
>>
Overall Sequence
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Overall Sequence

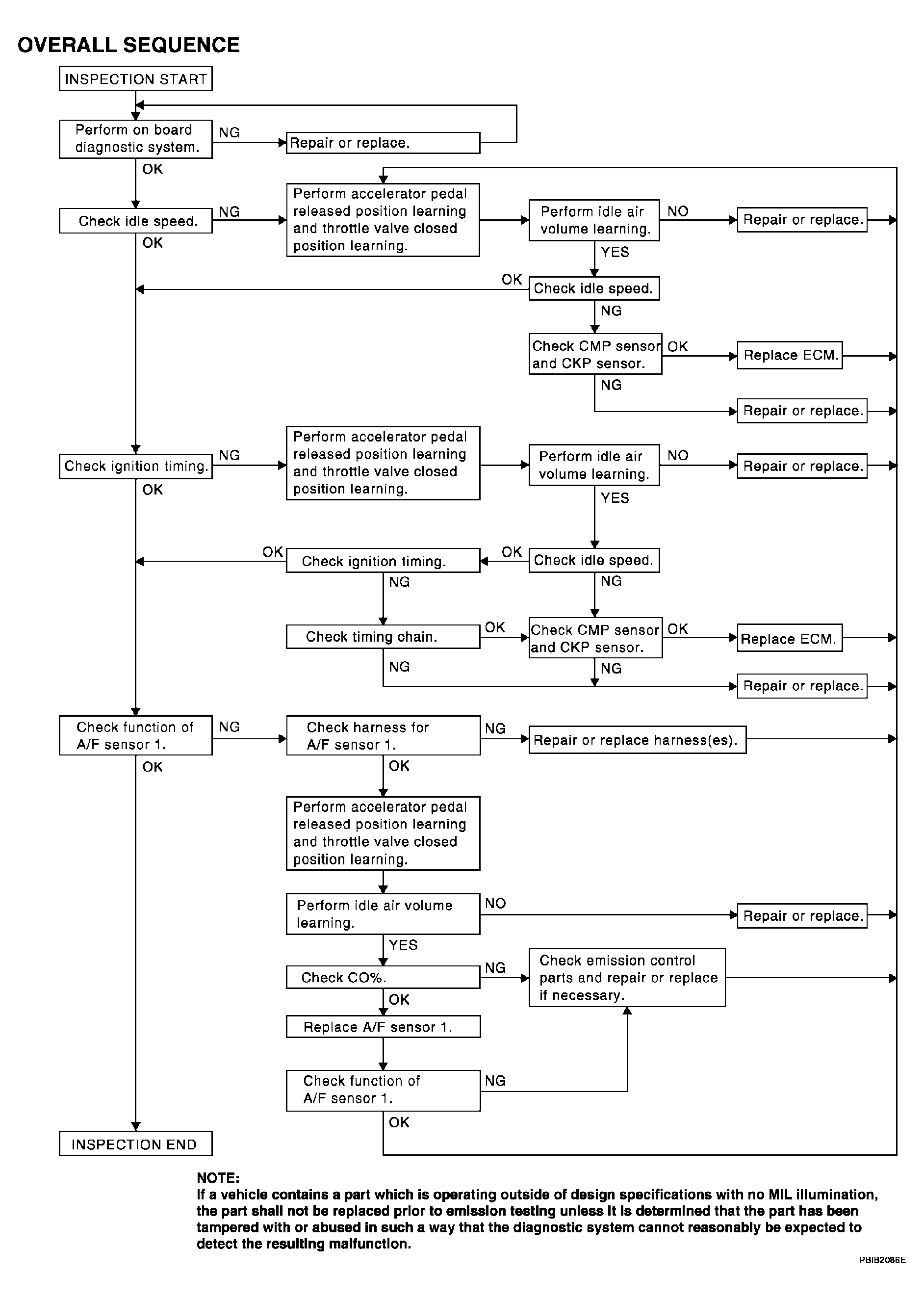

Fig 1: Overall Sequence Of Basic Service Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
