Section 12 (Automatic Transmission): Overhaul: Components

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For GI, go to GENERAL INFORMATION .

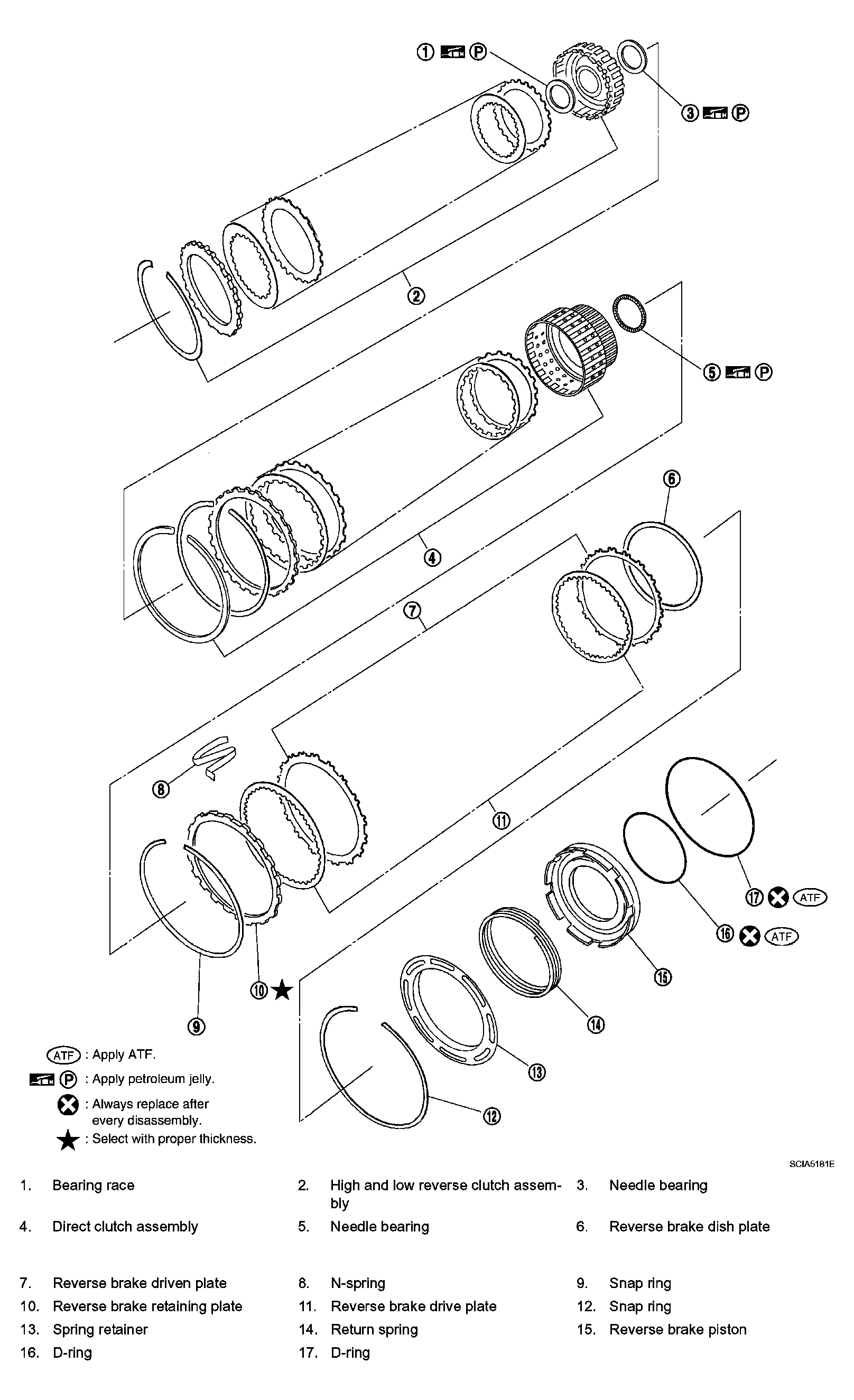

Fig 1: Overhaul Replacement Components With Torque Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

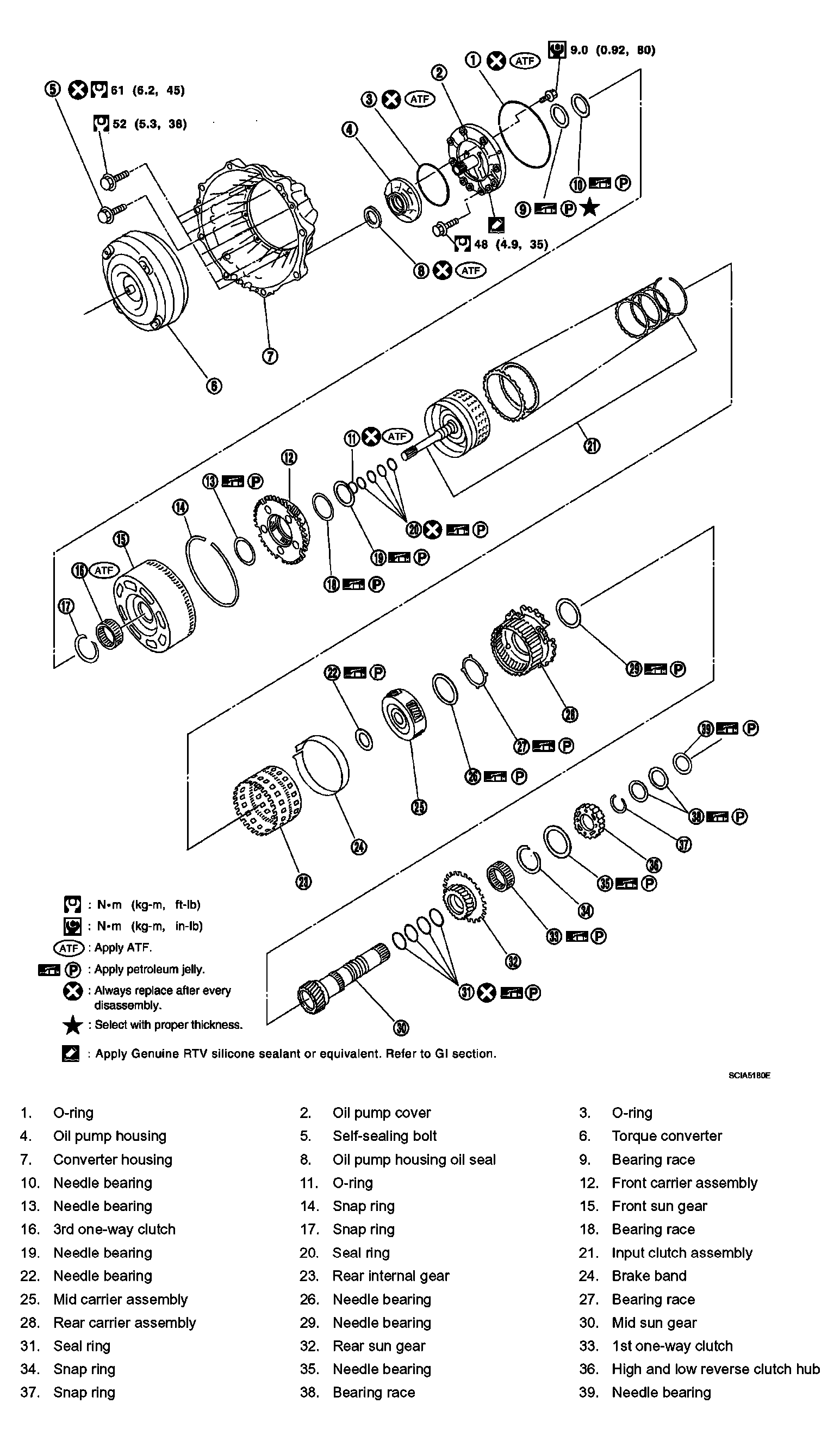

Fig 2: Overhaul Replacement Components With Torque Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

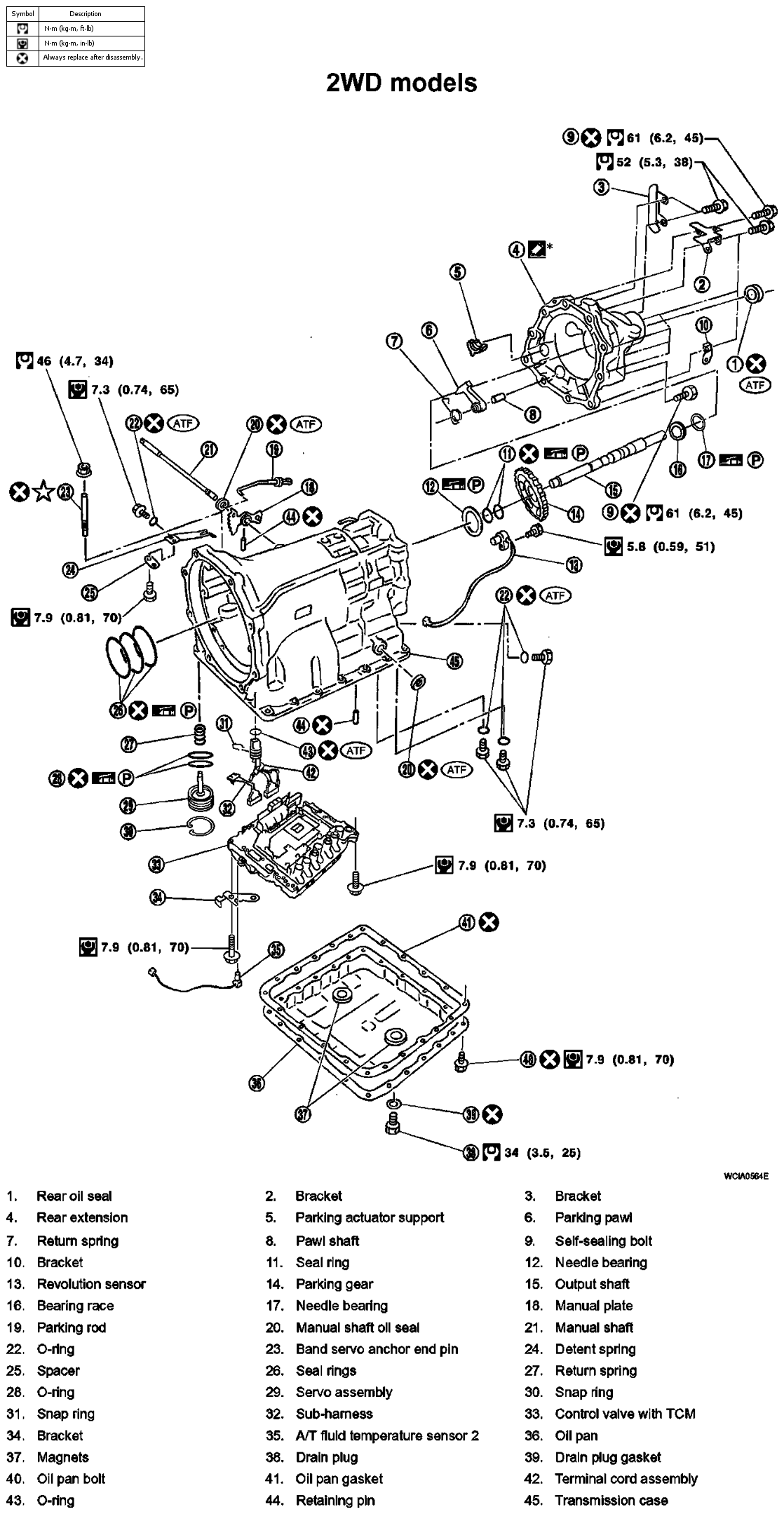

Fig 3: Overhaul Replacement Components With Torque Specifications 2WD Models

Courtesy of NISSAN MOTOR CO., U.S.A.

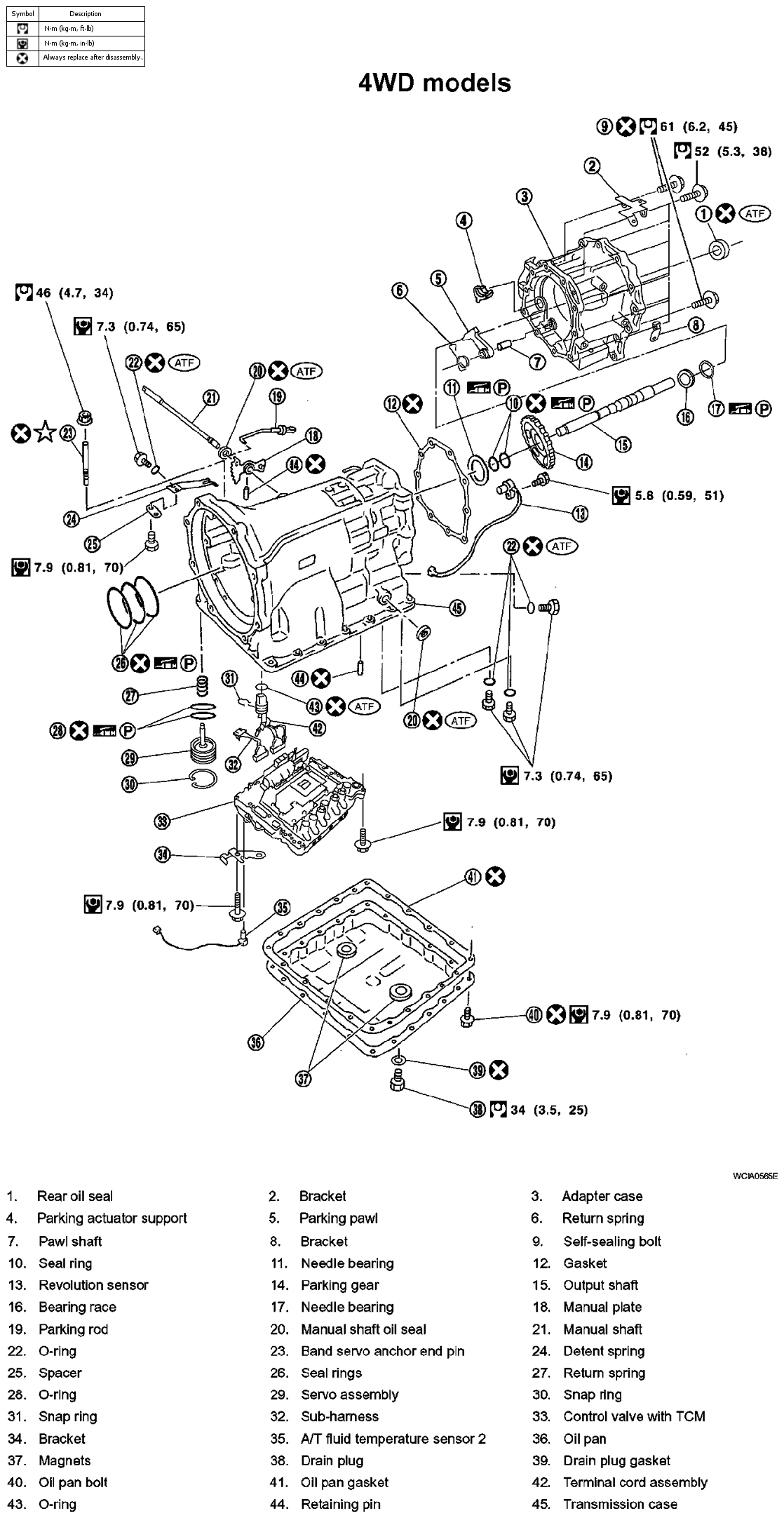

Fig 4: Overhaul Replacement Components With Torque Specifications 4WD Models

Courtesy of NISSAN MOTOR CO., U.S.A.
