CONSULT-II Function (MULTI AV): Version
Displays version of each unit connected to the AV control unit.

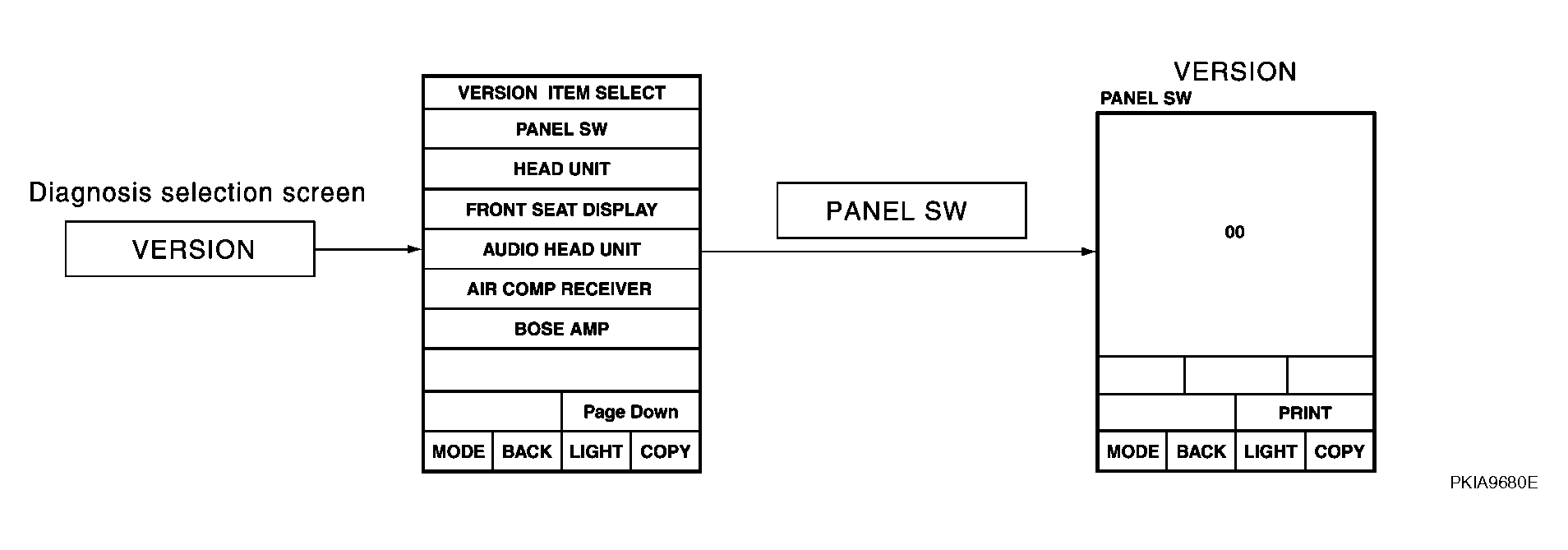

CONSULT-II OPERATION
| Version display | Remarks |
|---|---|
| "PANEL SW" | Multifunction switch |
| "HEAD UNIT" | AV control unit |
| "REAR VIEW CAMERA" | - |
| "FRONT SEAT DISPLAY" | Display |
| "AUDIO HEAD UNIT" | - |
| "AIR COMP RECEIVER" | Low Tire Pressure Warning Control Unit |
| "BOSE AMP" | - |
| "IVCS" |
NOTE:
Although these items are shown on the CONSULT-II screen, impracticable. Because, these items are not applied
|
| "VOICE UNIT" |
