Front Suspension Assembly: Components

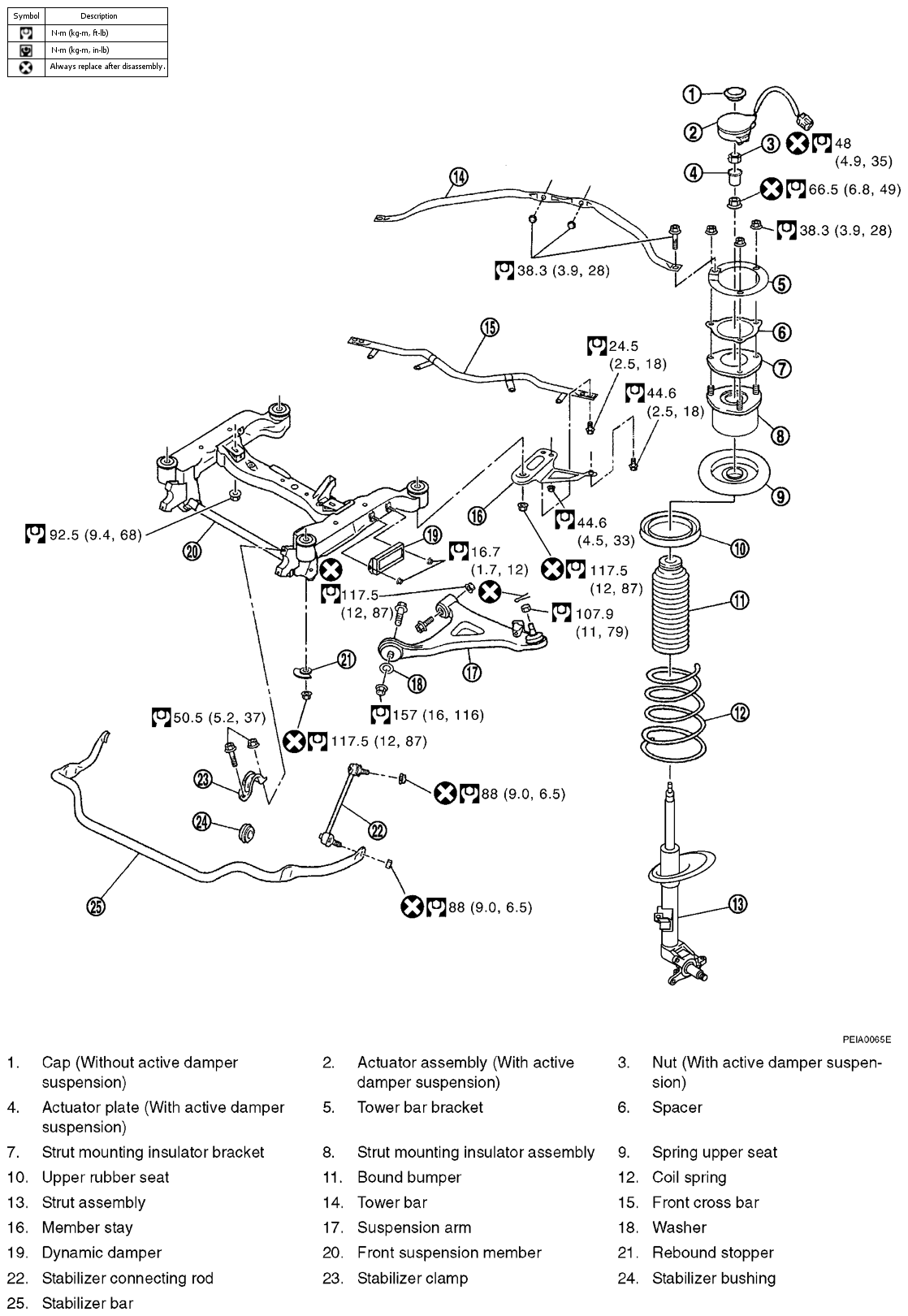

Fig 1: Exploded View Of Front Suspension Components With Torque Specifications
G04128645Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS ", for the symbols in Fig 1 .
