Removal and Installation: Components

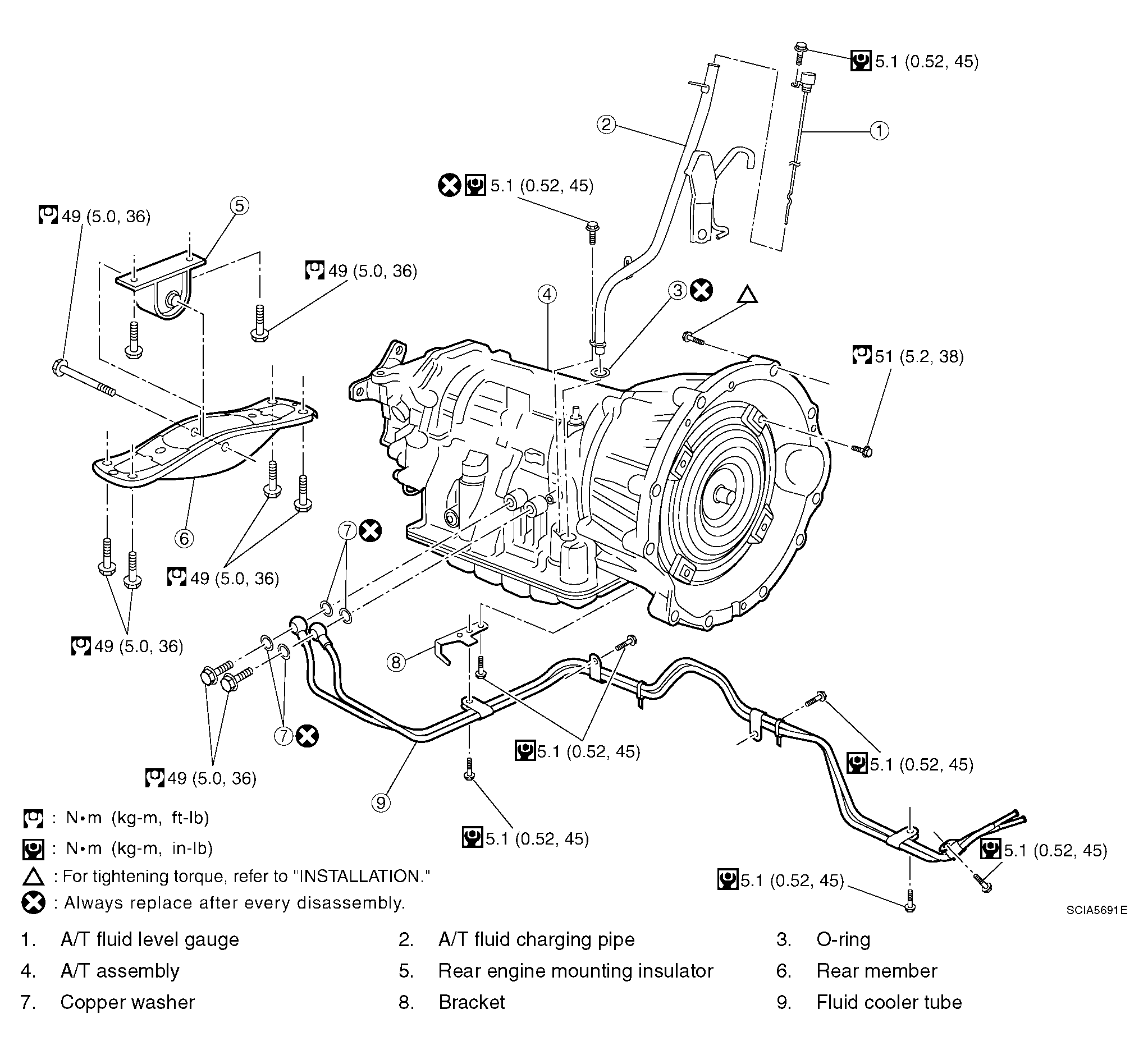

Fig 1: Transmission Assembly With Torque Specifications
G04128222Courtesy of NISSAN MOTOR CO., U.S.A.
