Cross-sectional View (VK45DE Models for AWD)

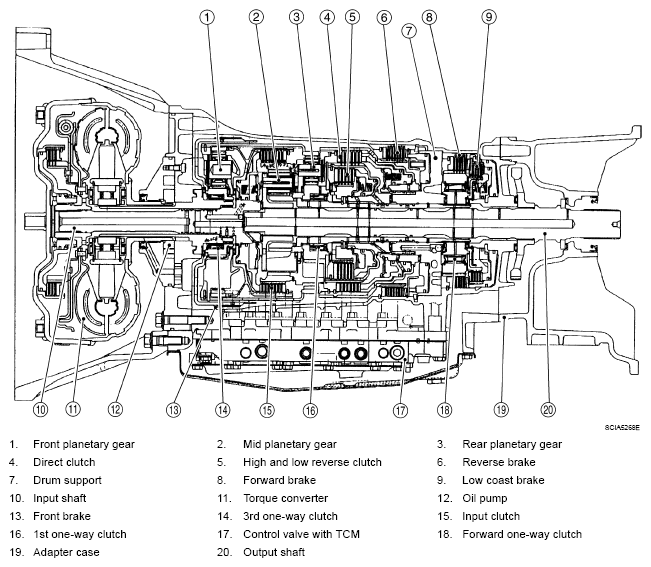

Fig 1: Identifying Cross-Sectional View Of A/T Control System Components (VK45DE Models For AWD)
G05217906Courtesy of NISSAN MOTOR CO., U.S.A.
