BCM (Body Control Module): Schematic

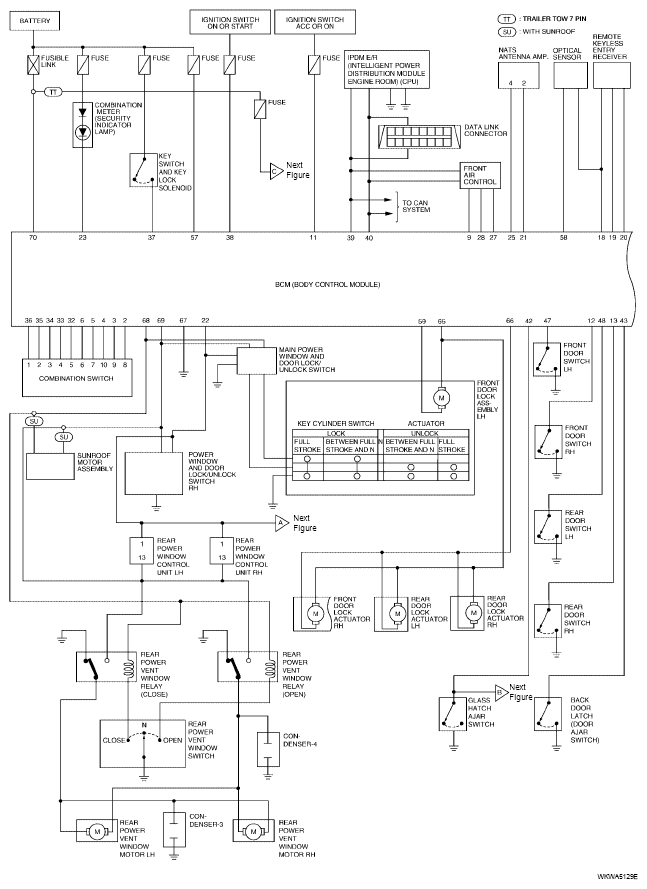

Fig 1: BCM Schematic (1 Of 2)

G05231572

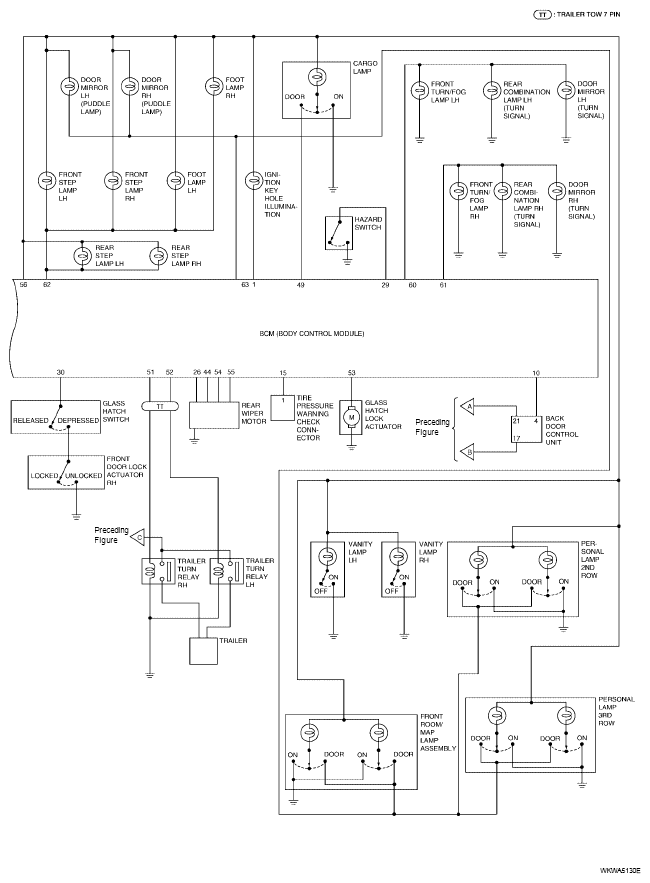

Fig 2: BCM Schematic (2 Of 2)

G05231573
