Power Window System: Schematic

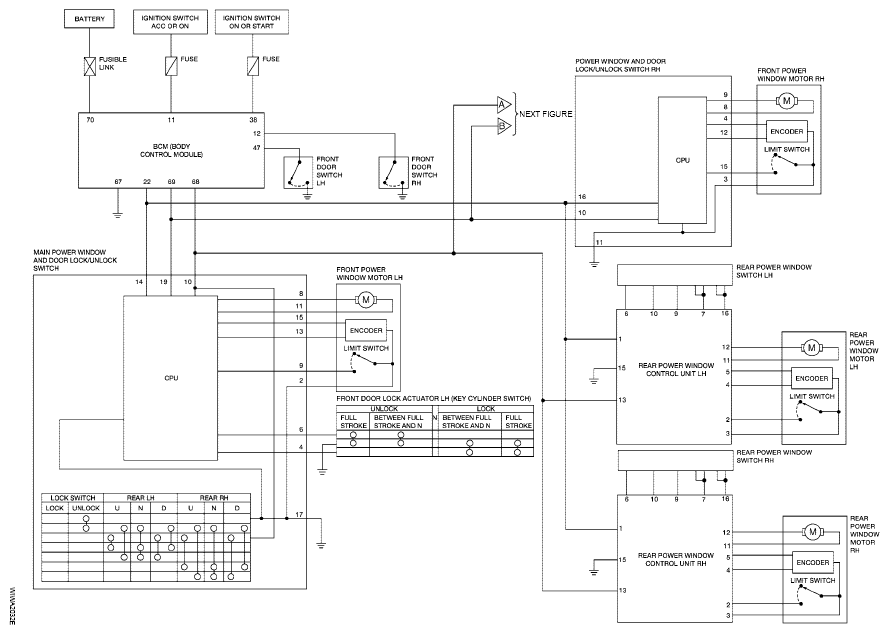

Fig 1: Power Window System - Schematic Diagram (1 Of 2)
G05231027

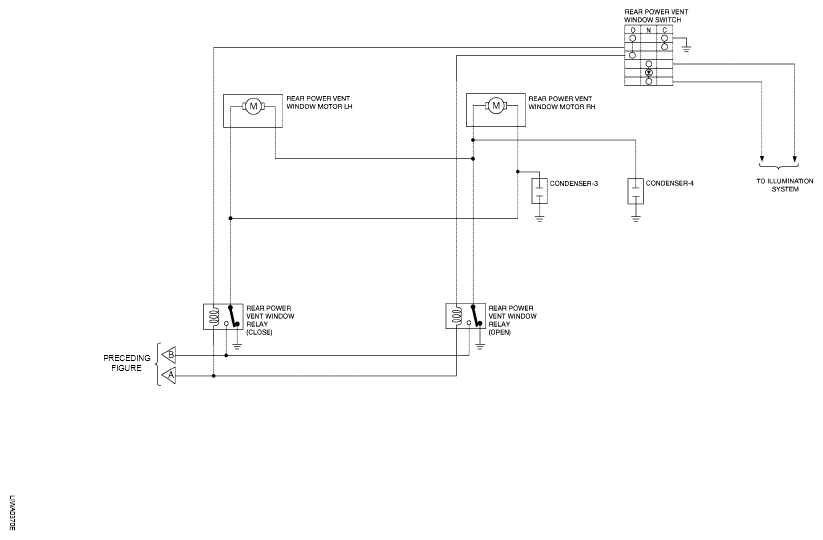

Fig 2: Power Window System - Schematic Diagram (2 Of 2)
G04902722
