Exploded View: Removal

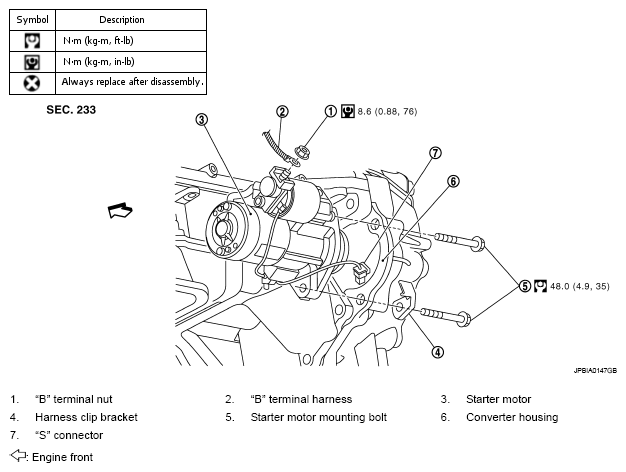

Fig 1: Identifying Starter Motor Replacement Components With Torque Specifications
G05729044Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
