Exploded View

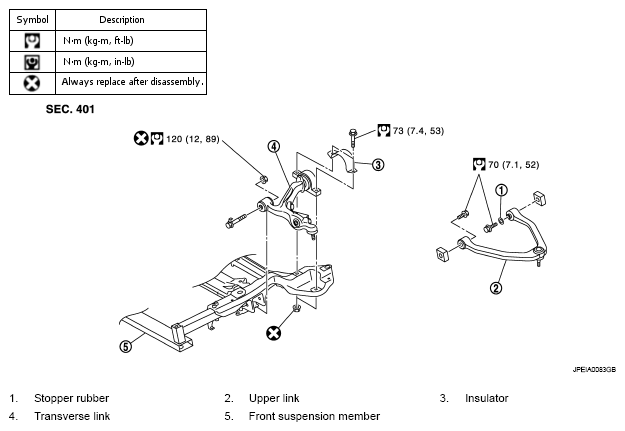

Fig 1: Exploded View Of Upper Link Replacement Components With Torque Specifications
G05729284Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS for symbols in the figure.
