Vacuum Hose Drawing

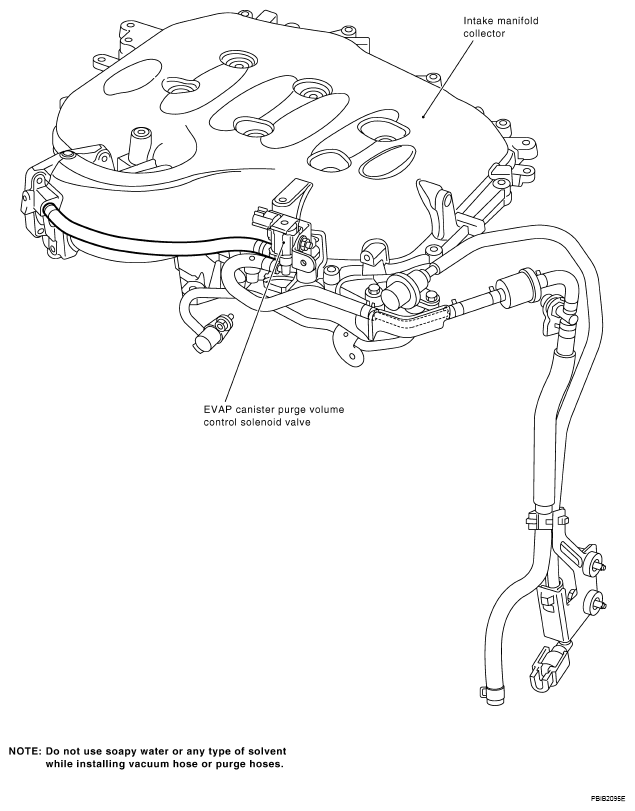

Fig 1: Identifying EVAP Canister Purge Volume Control Solenoid Valve And Intake Manifold Collector

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "SYSTEM DIAGRAM "for Vacuum Control System.
