Rear Window Defogger: Schematic

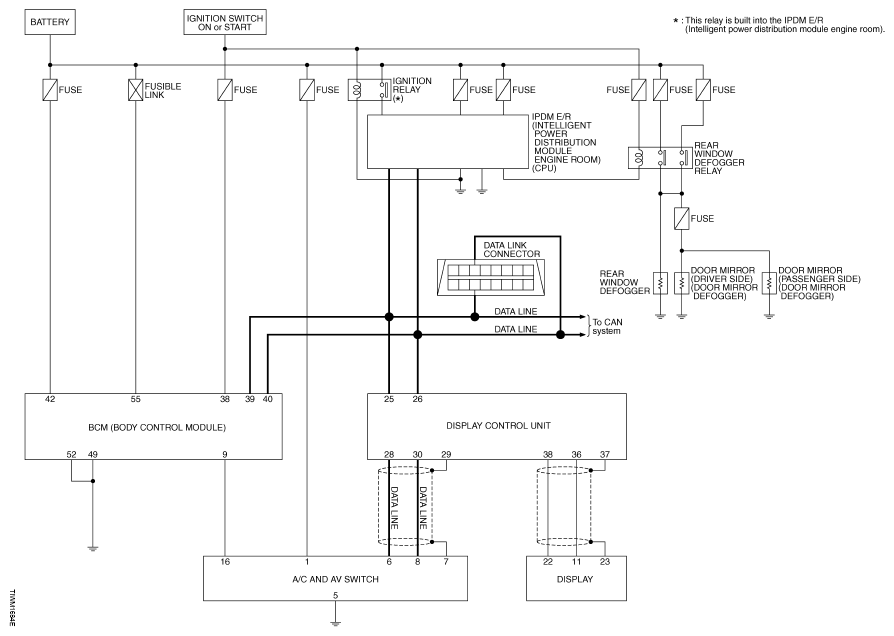

Fig 1: Identifying Rear Window Defogger - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
