Center Console (Mt Models)

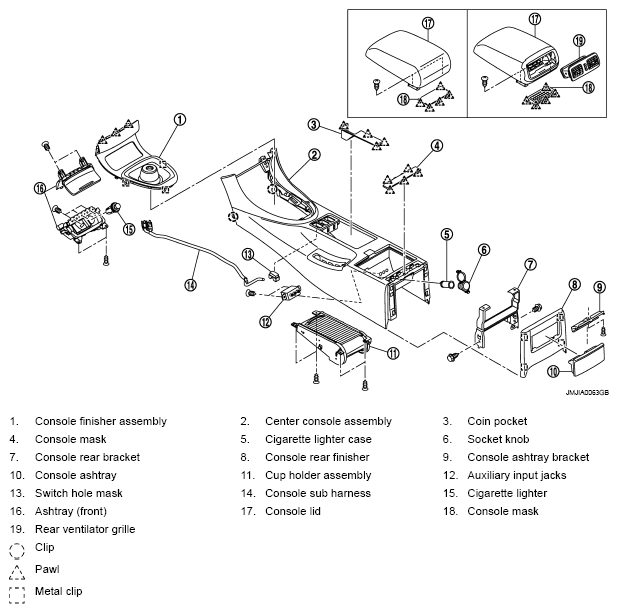

Fig 1: Exploded View Center Console (MT Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
