Removal and Installation: Notes

WARNING: This page is about a different car, the 2008 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

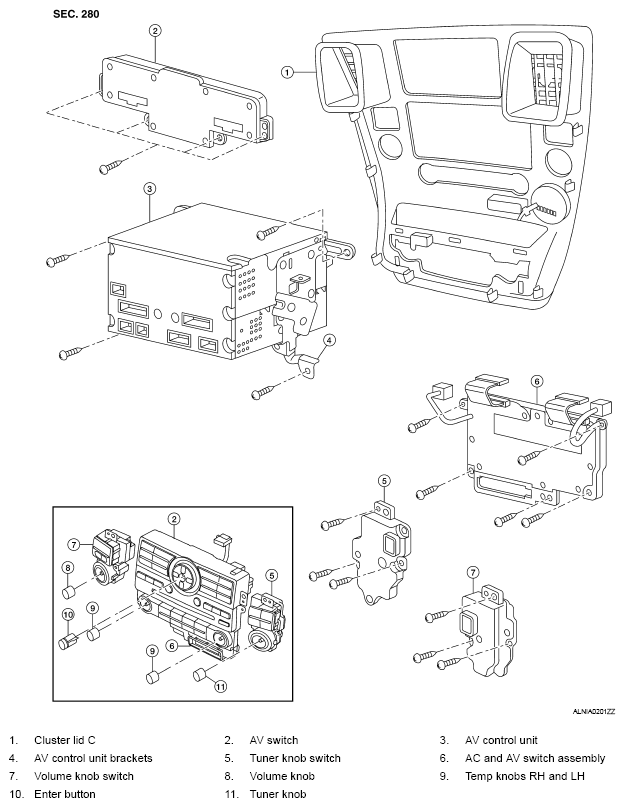

Fig 1: Identifying AV Control Unit Components
G05743536
CAUTION: Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs must not be removed from the switches when removing and installing the A/C or AV switch assembly to prevent damage to the switch assembly.
