Exploded View

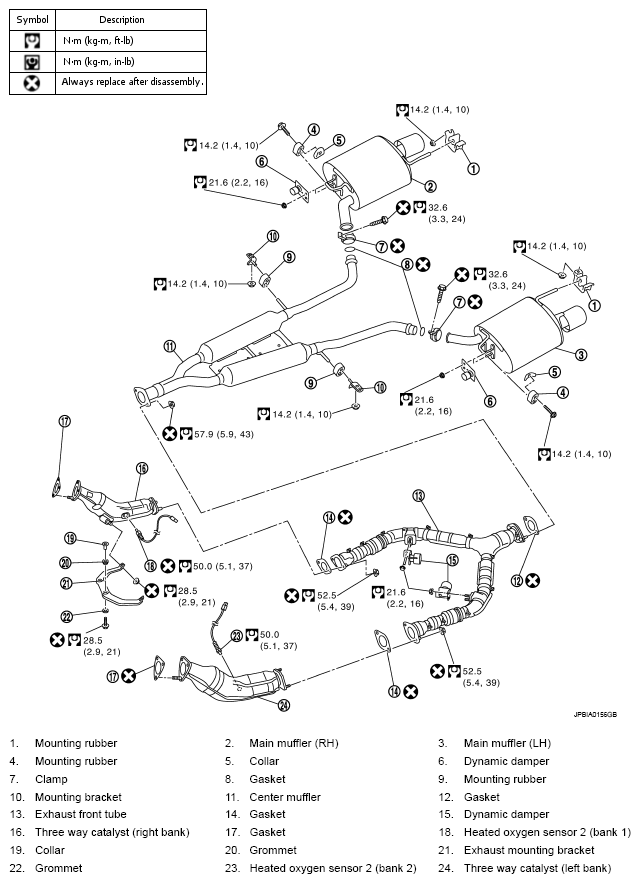

Fig 1: Exploded View Of Exhaust System With Torque Specifications
G05224190Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbol marks in the figure.
