2WD : Exploded View

Refer to REMOVAL AND INSTALLATION .

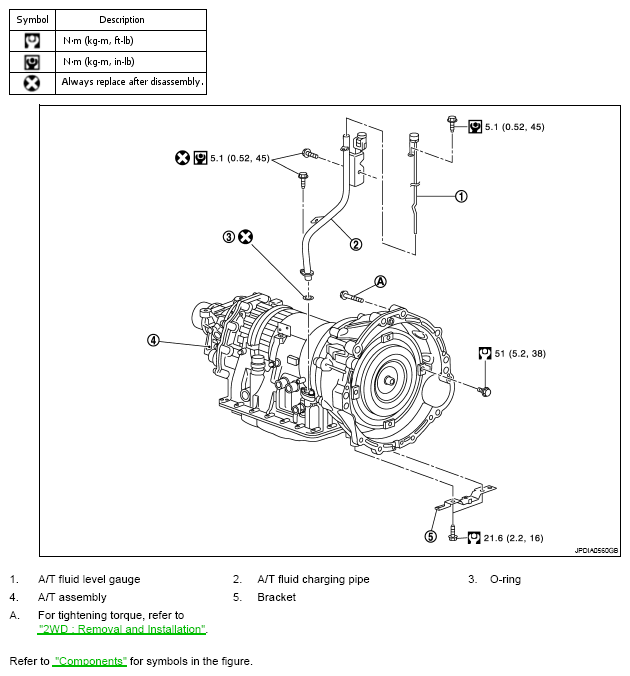

Fig 1: Exploded View Of Transmission Assembly (2WD) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
