Exploded View

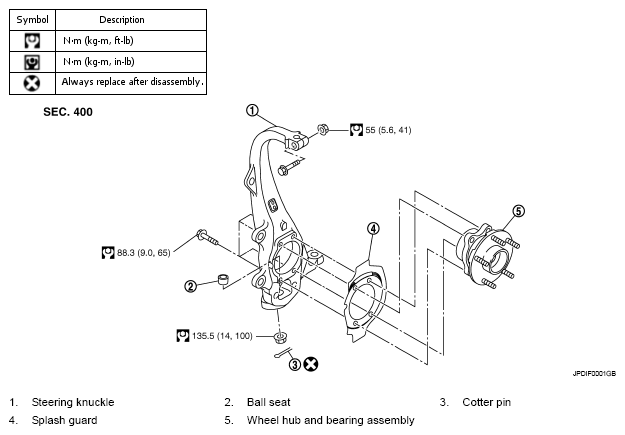

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
