Engine Control System - G37 Coupe - Introduction
>>
Function Diagnosis
>>
Evaporative Emission System
>>
System Diagram
>>
Evaporative Emission Line Drawing
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Evaporative Emission Line Drawing

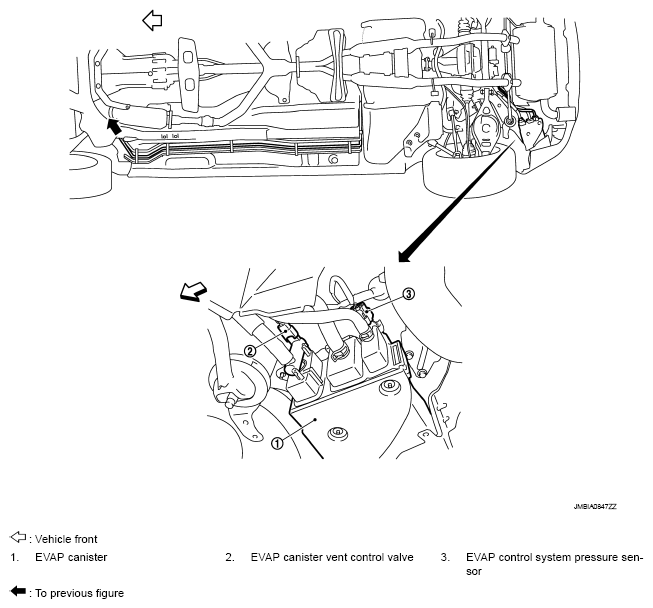

Fig 1: Evaporative Emission Line Drawing Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

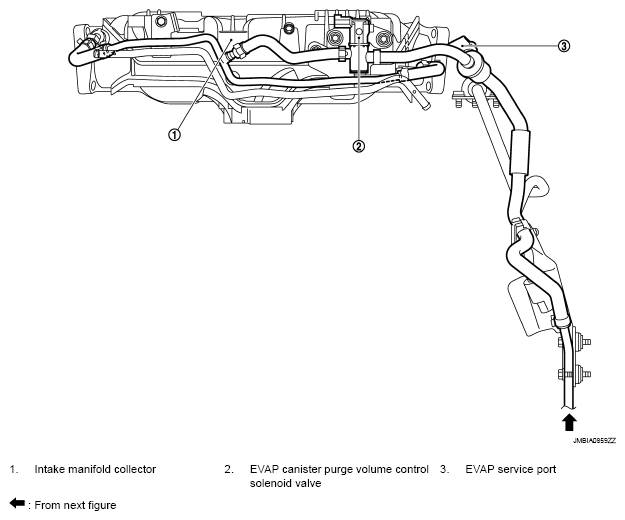

Fig 2: Evaporative Emission Line Drawing Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
