Section 49 (Audio, Visual & Navigation System)
>>
Premium With Navigation
>>
Function Diagnosis
>>
Audio System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
WARNING:
This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

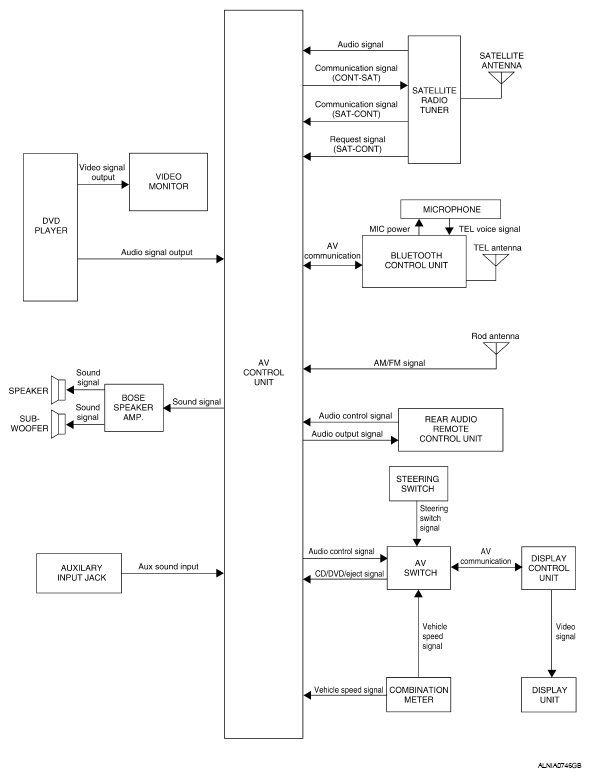

Fig 1: Audio System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
