Home >> Infiniti >> 2008 >> G37 Base >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> On-Vehicle Repair >> Steering Gear And Linkage >> Exploded View >> Removal And Installation
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Removal And Installation

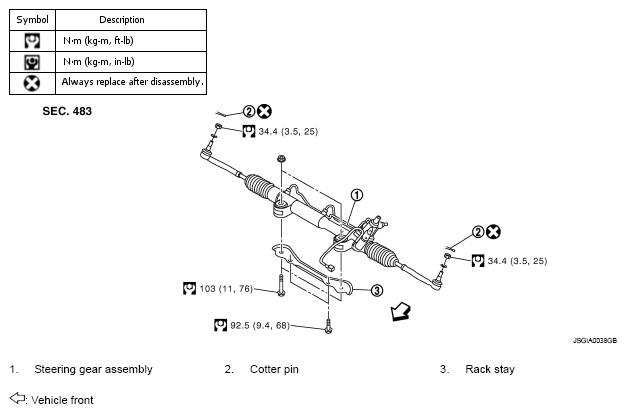

Fig 1: Removing/Installing Steering Gear Assembly With Torque Specifications
G05735168Courtesy of NISSAN MOTOR CO., U.S.A.
