Windshield Glass: Components

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

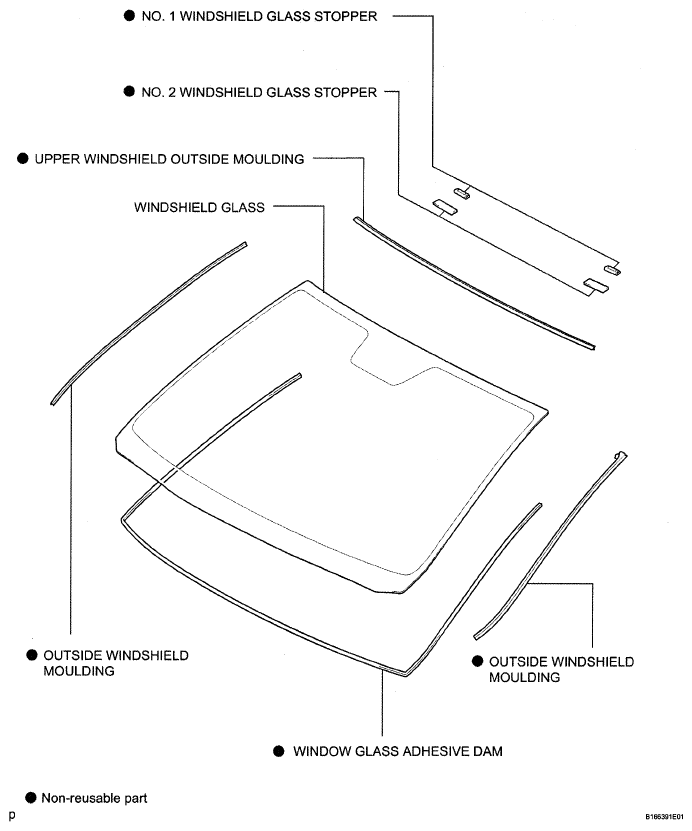

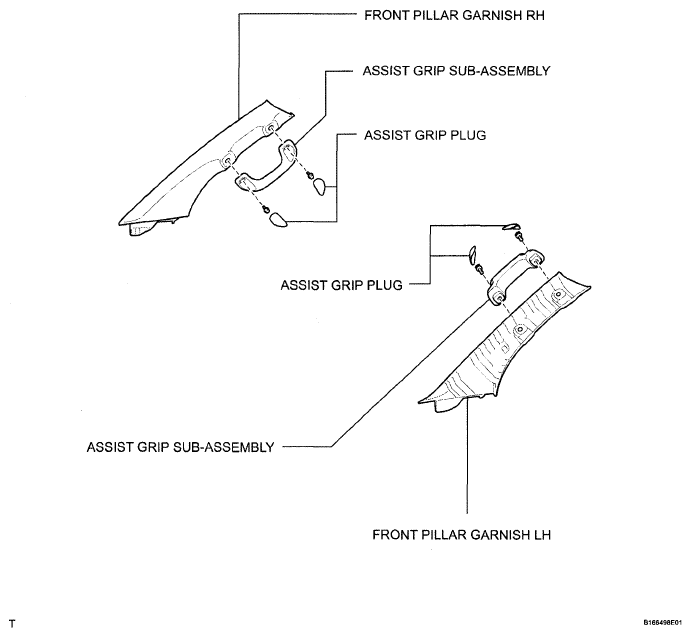

Fig 1: Identifying Windshield Glass Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

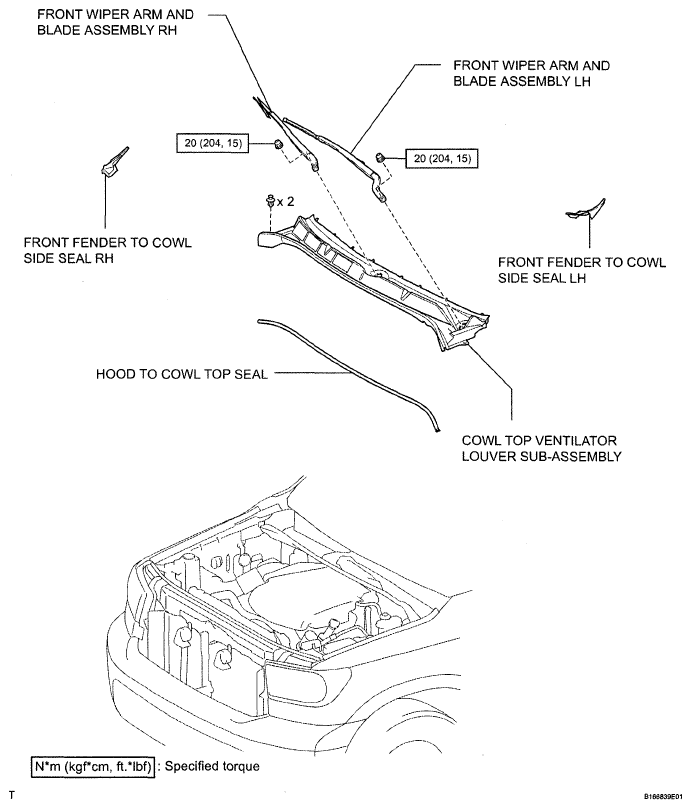

Fig 2: Windshield Glass Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

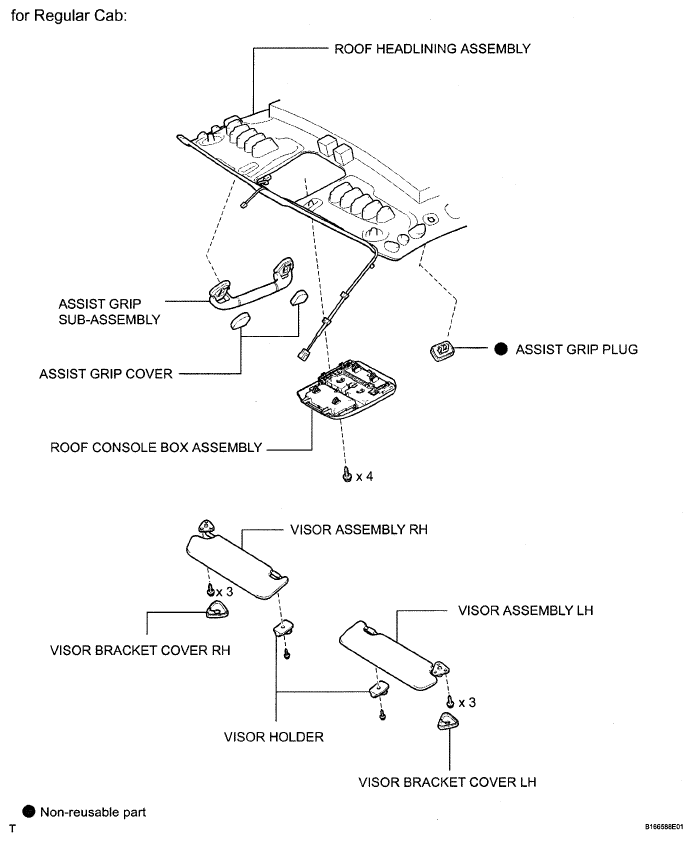

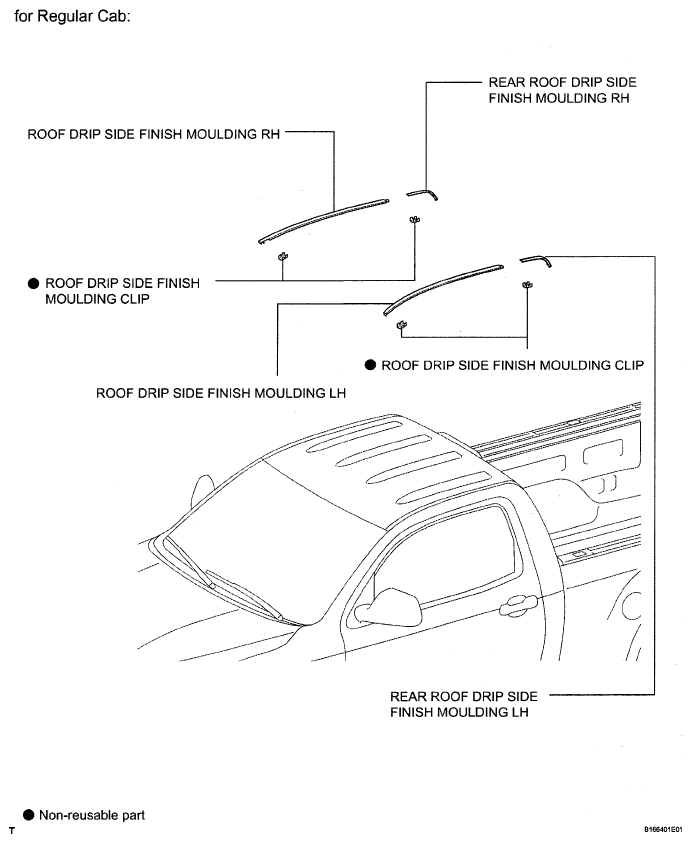

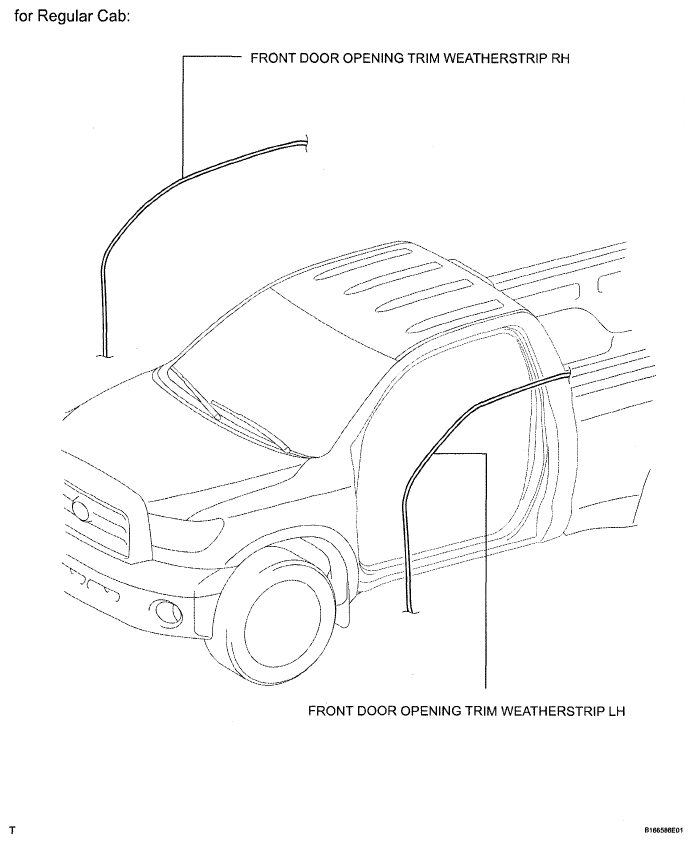

Fig 3: Identifying Windshield Glass Components - For Regular Cab (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Windshield Glass Components - For Regular Cab (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Windshield Glass Components - For Regular Cab (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

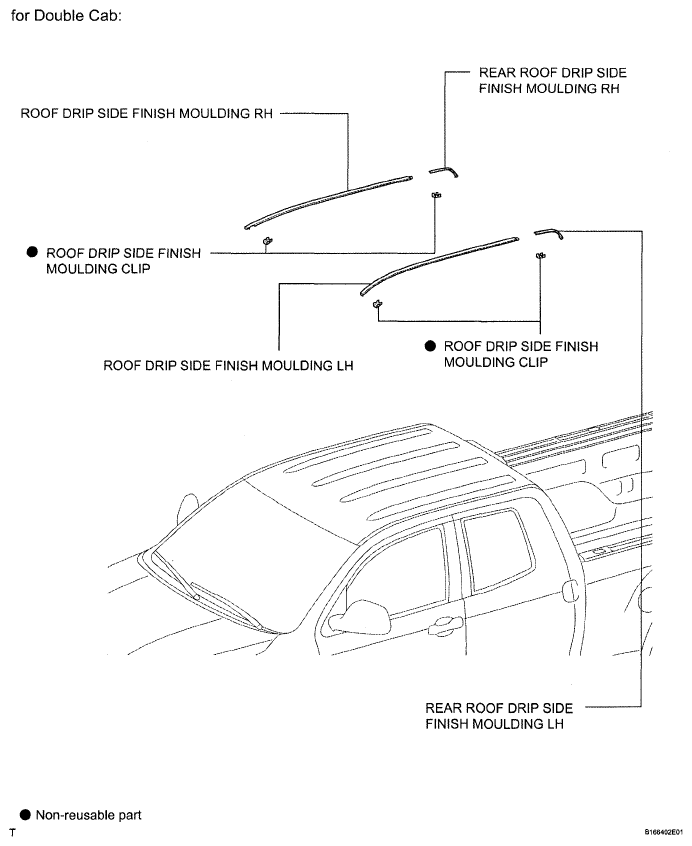

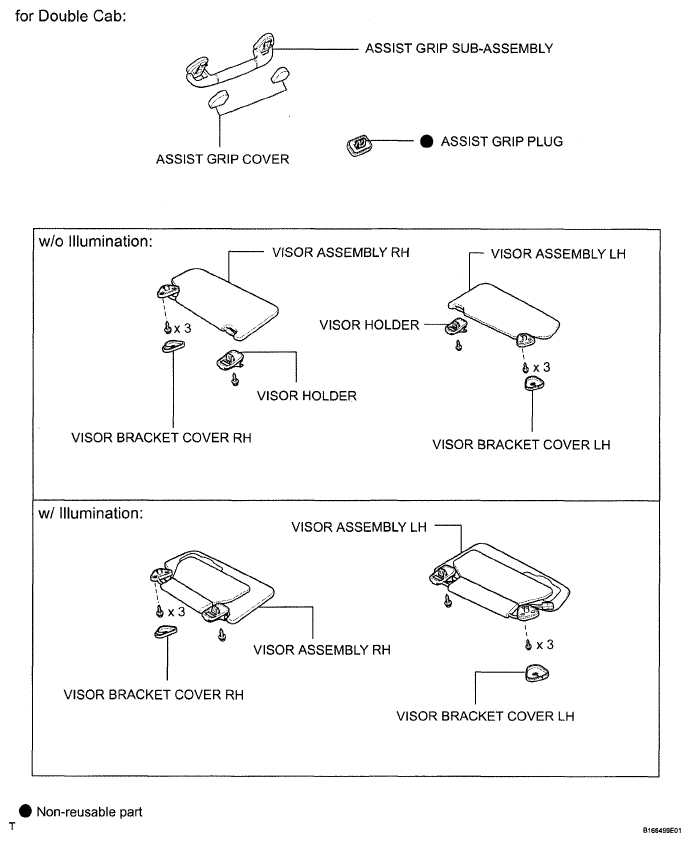

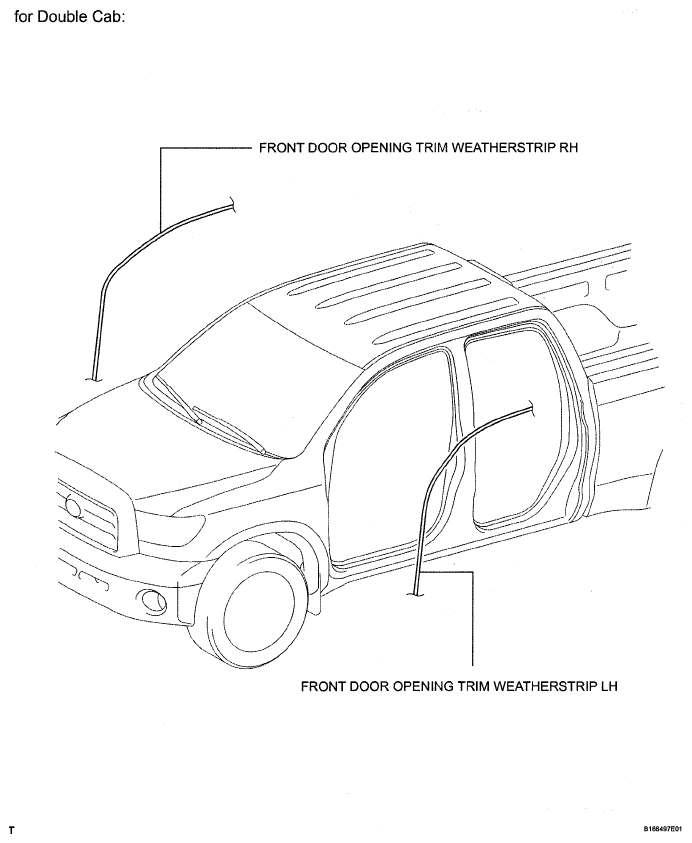

Fig 6: Identifying Windshield Glass Components - For Double Cab (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Windshield Glass Components - For Double Cab (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Windshield Glass Components - For Double Cab (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

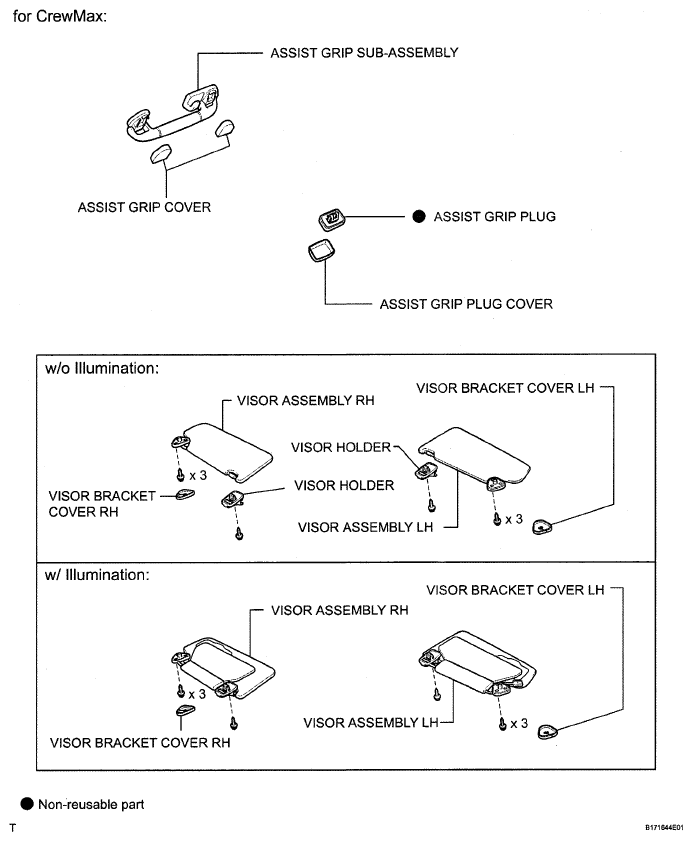

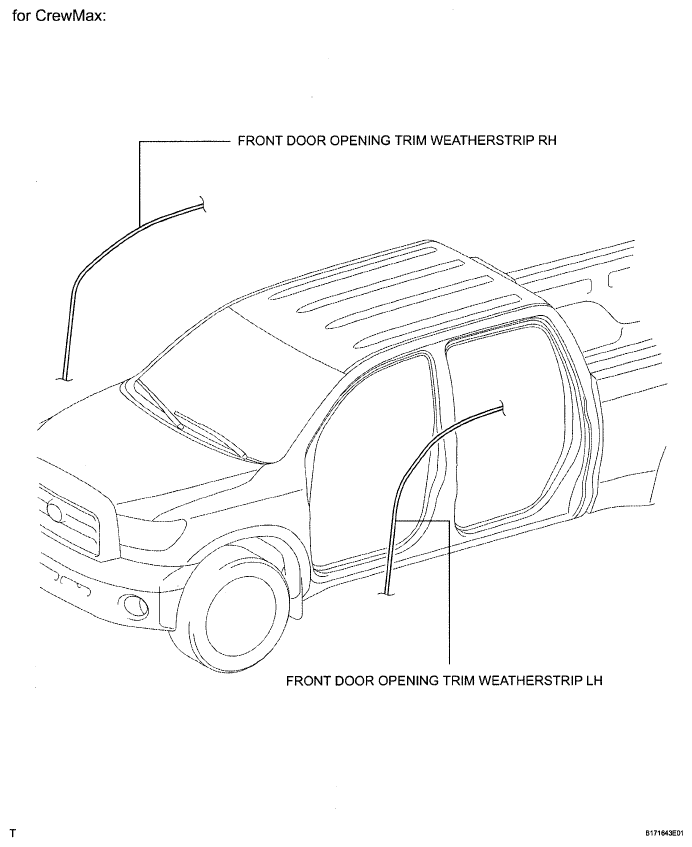

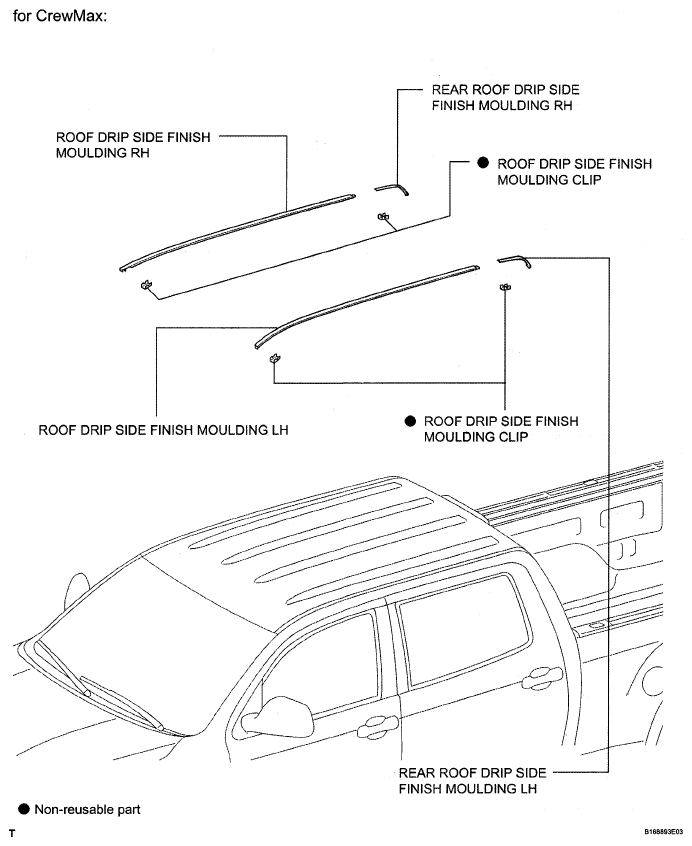

Fig 9: Identifying Windshield Glass Components - For Crewmax (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Windshield Glass Components - For Crewmax (2 Of 3)

Fig 11: Identifying Windshield Glass Components - For Crewmax (3 Of 3)

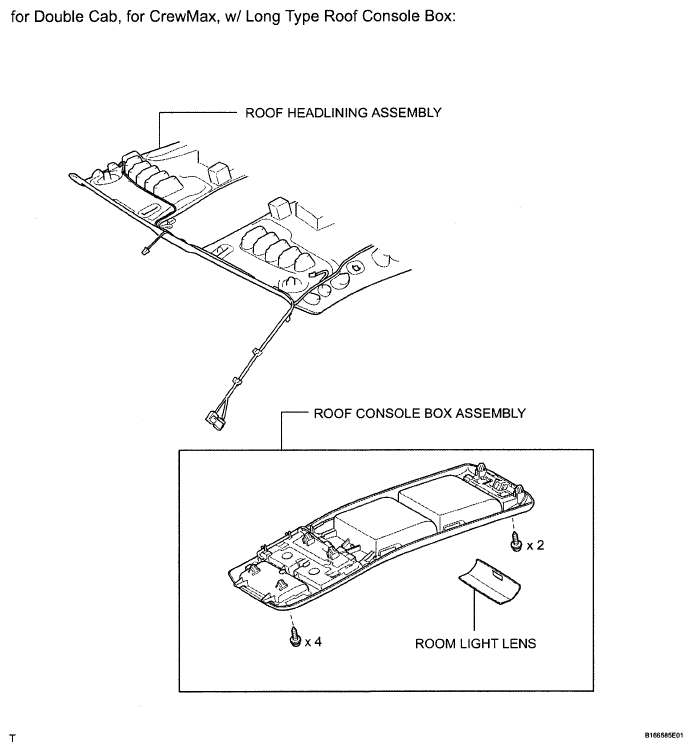

Fig 12: Identifying Windshield Glass - W/Long Type Roof Console Box Components

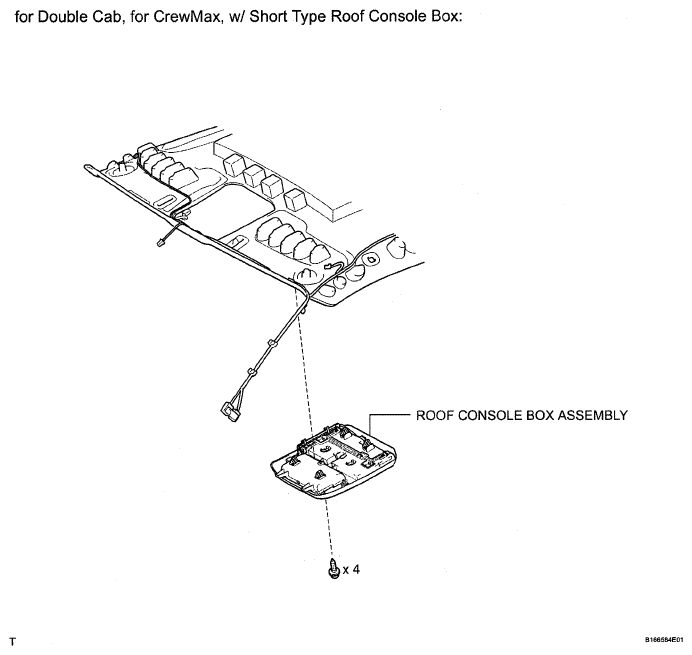

Fig 13: Identifying Windshield Glass - W/Short Type Roof Console Box Components

Fig 14: Identifying Windshield Glass Components
