Exploded View

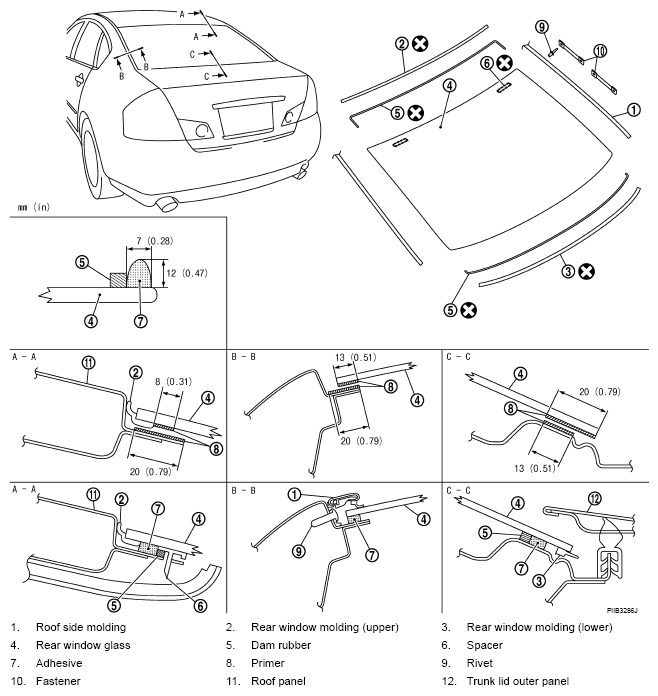

Fig 1: Identifying Rear Window Glass And Molding Gap Specification
G05212631Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to CONTENTS for symbols in the figure.
