Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

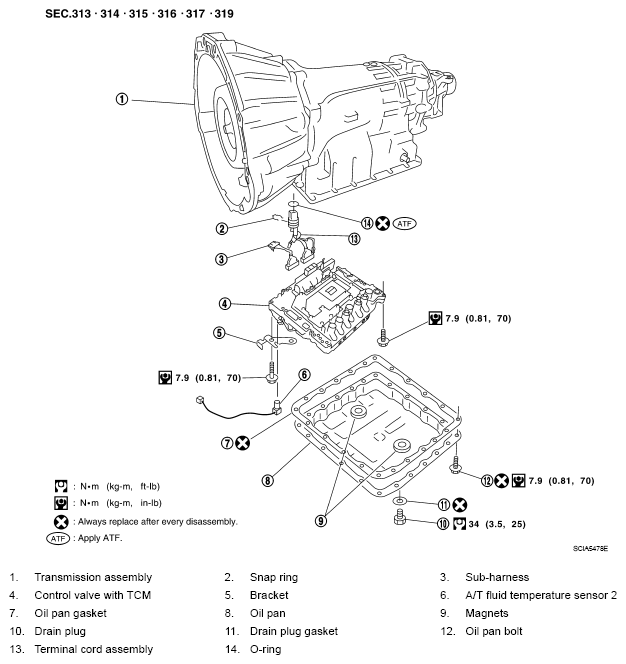

Fig 1: Identifying Control Valve With TCM Components

G05740109
