EVAP Canister

Tighten EVAP canister as shown in the figure.

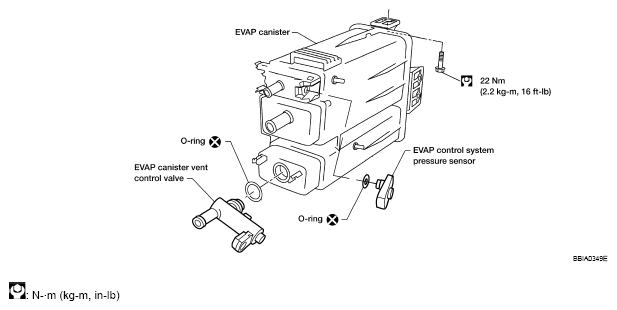

Fig 1: Identifying EVAP Canister Remove/Install Components
G05739853Courtesy of NISSAN MOTOR CO., U.S.A.
