Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) (E41) | Left rear of engine compartment. See Figure. |
| AFS Control Unit (M16) | Left end of dash. See Figure. |

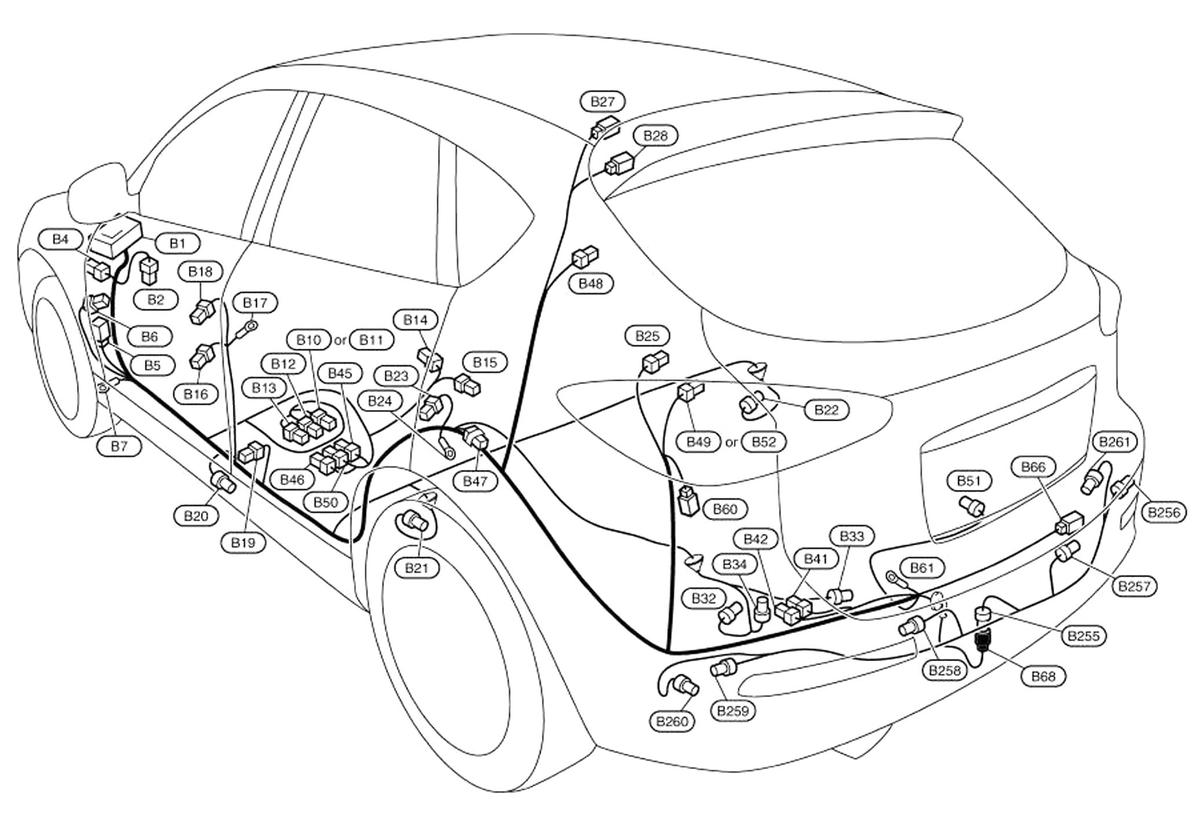

| Around View Monitor Control Unit (B46) | Under driver's seat. See Figure. |
| A/T Assembly (F51) | On transmission. See Figure. |
| Automatic Drive Positioner Control Unit (M52) | Left side of dash. See Figure. |

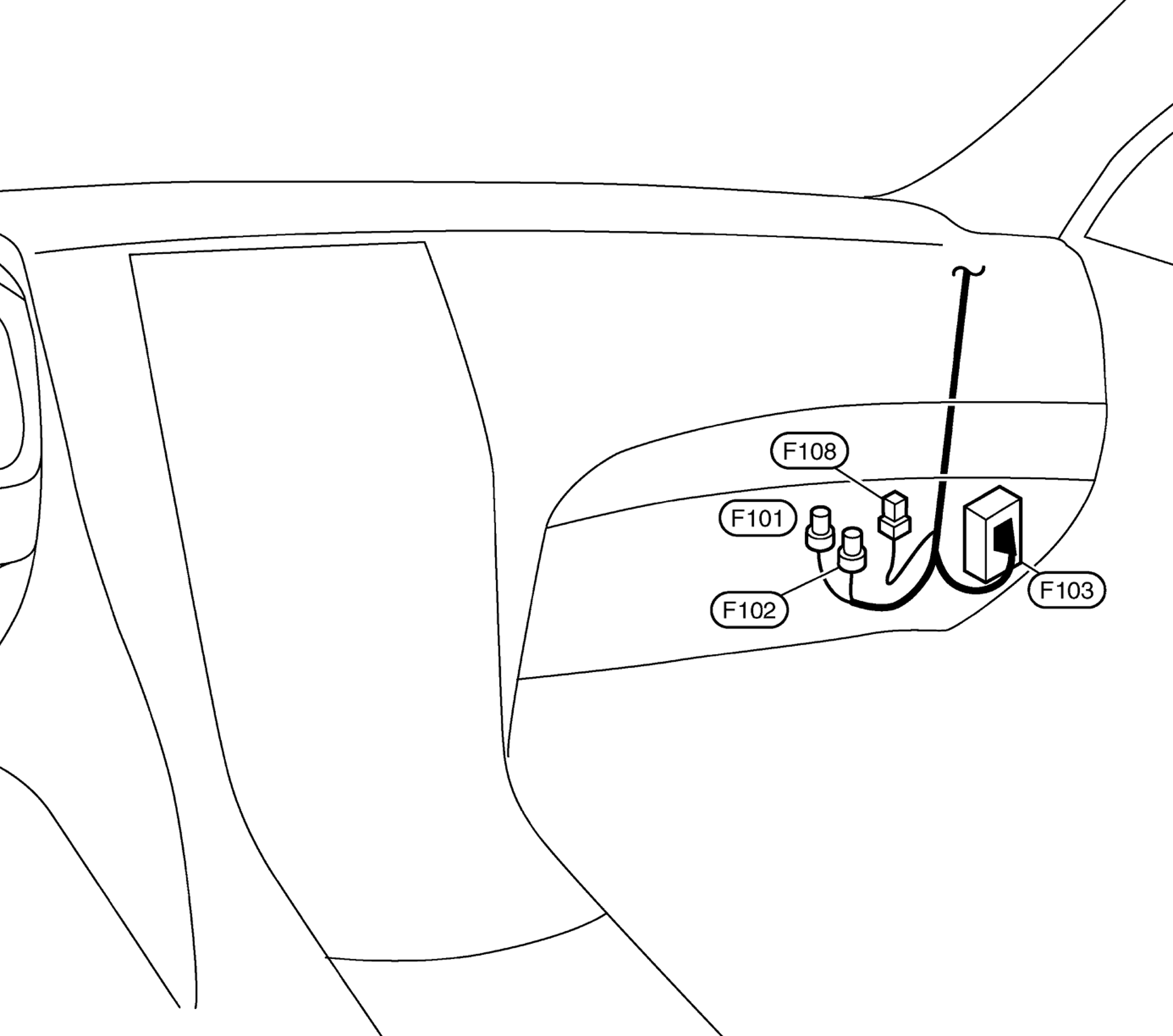

| AWD Control Unit (F108) | Right end of dash. See Figure. |
| BCM (Body Control Module) (M118) | Right kick panel. See Figure. |

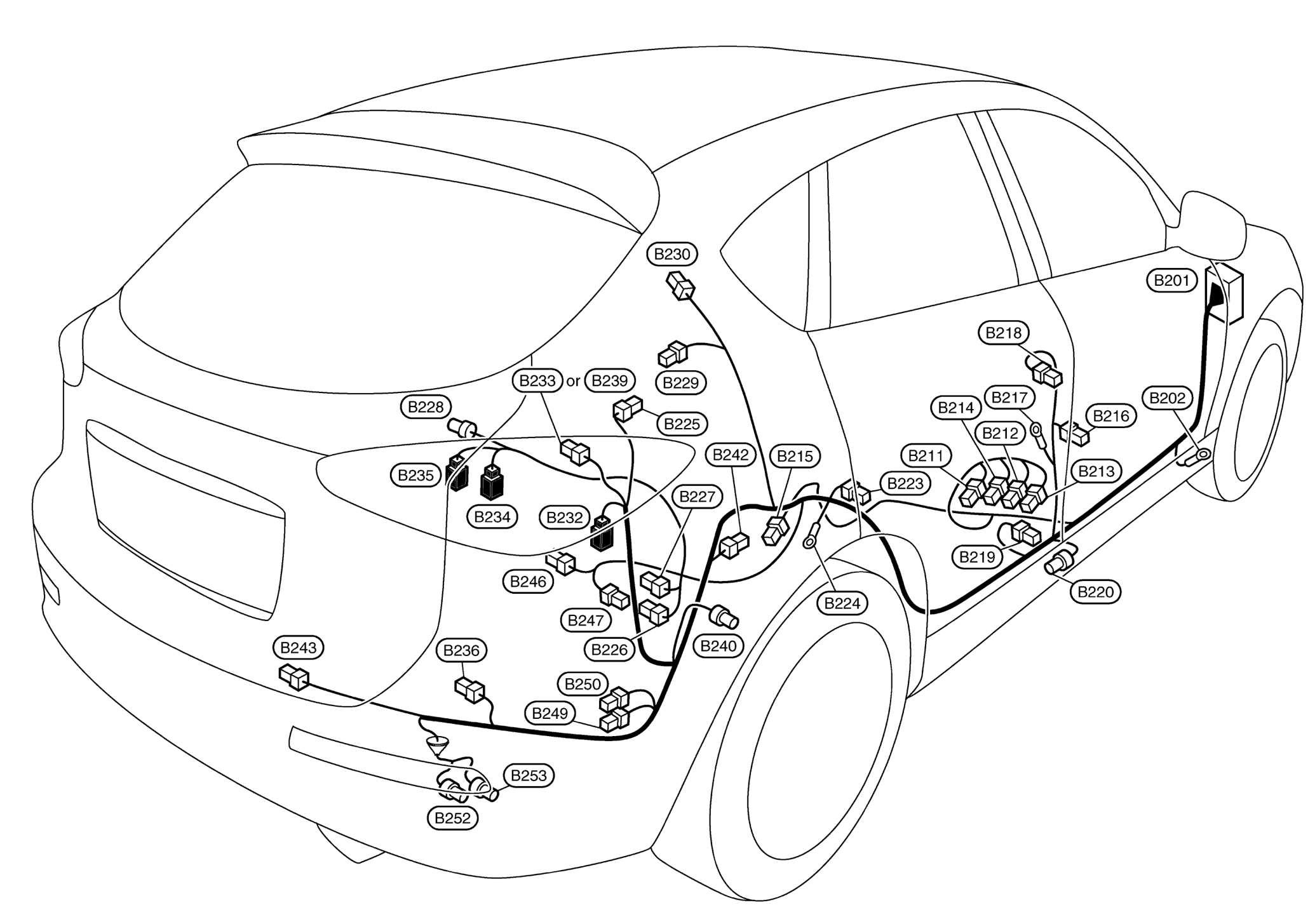

| Brake Booster Control Unit (B249) | Right rear of luggage compartment. See Figure. |
| Camera Control Unit (B50) | Under driver's seat. See Figure. |

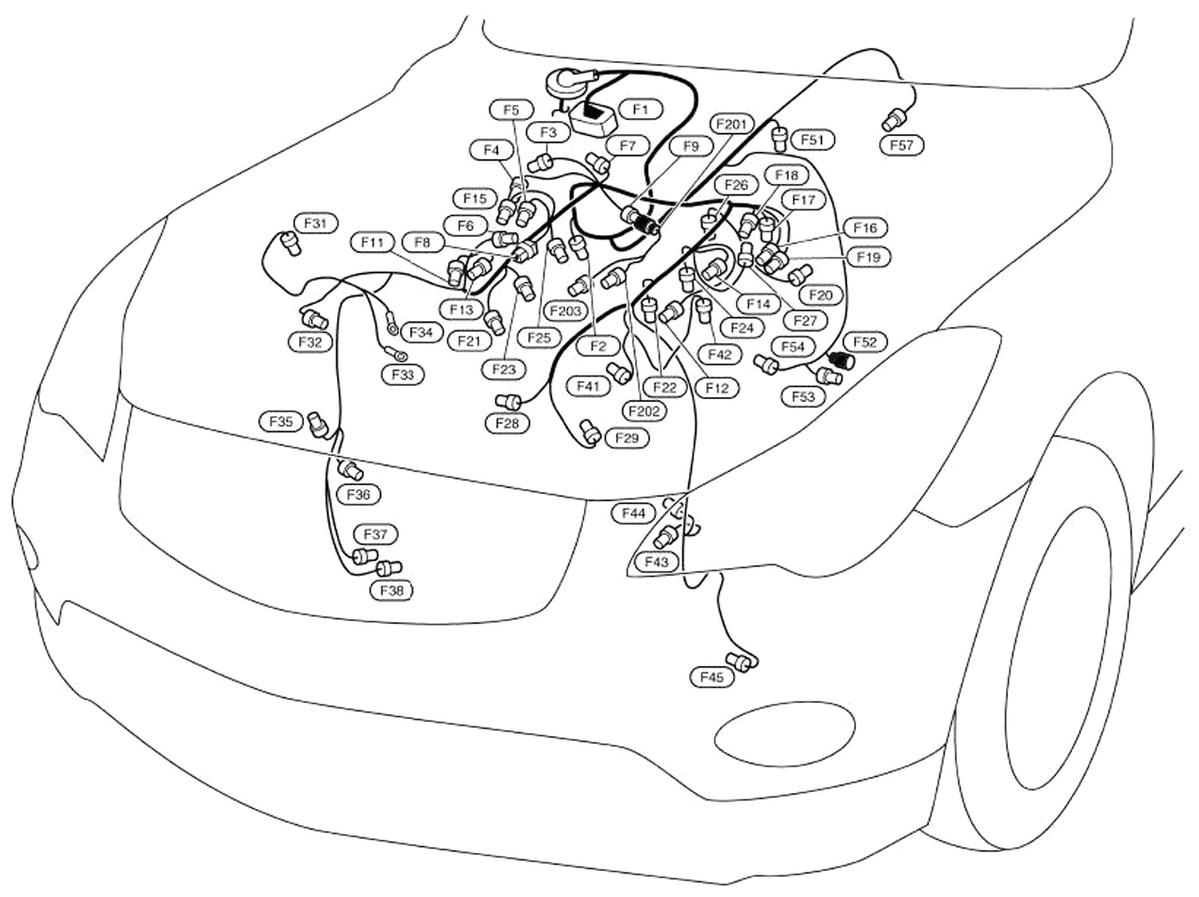

| ECM (Engine Control Module) (F101) | Right end of dash. See Figure. |

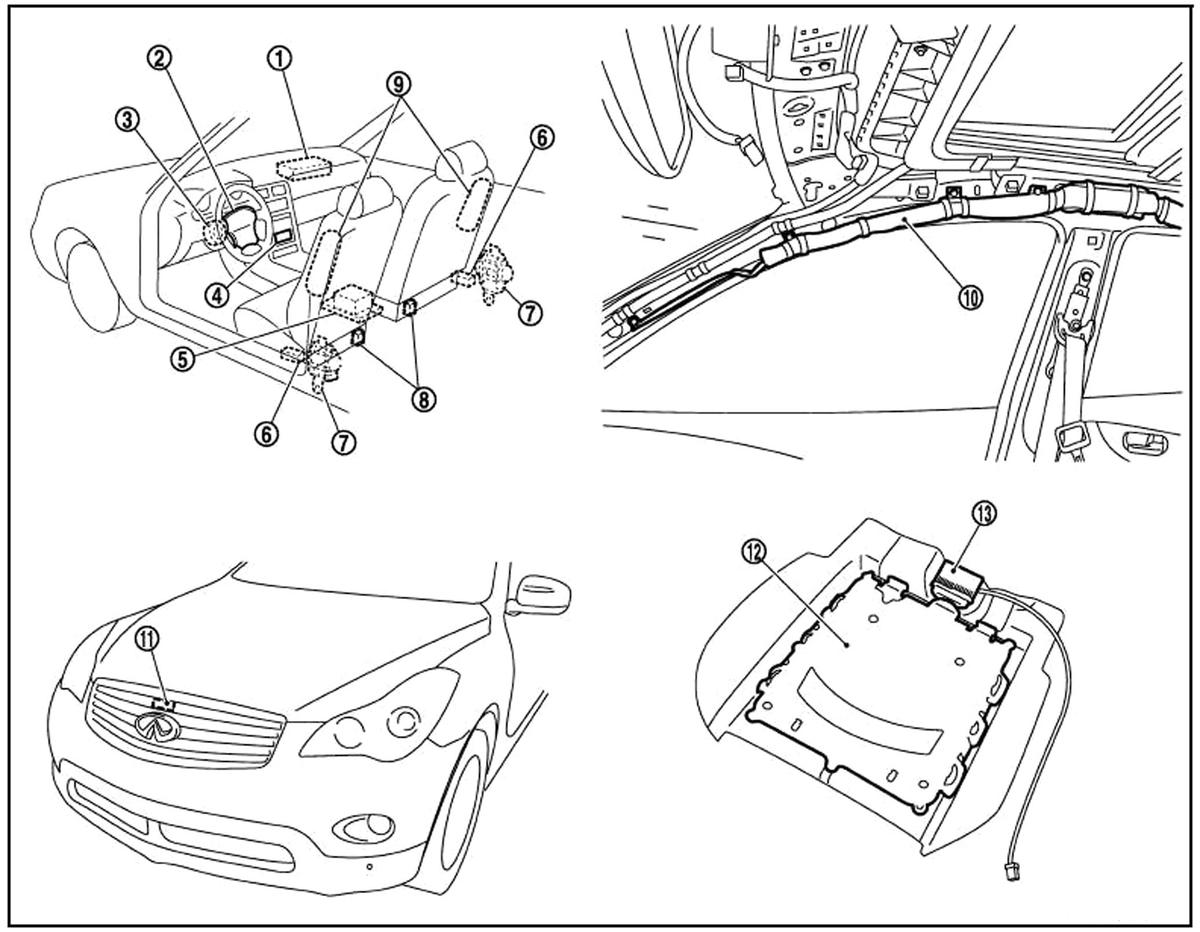

| Occupant Classification System Control Unit (13) | Under front passenger's seat. See Figure. |
| Power Steering Control Unit (M108) | Right side of dash. See Figure. |
| Rear Seat Back Power Return Control Unit (B226) | Right side of luggage compartment. See Figure. |

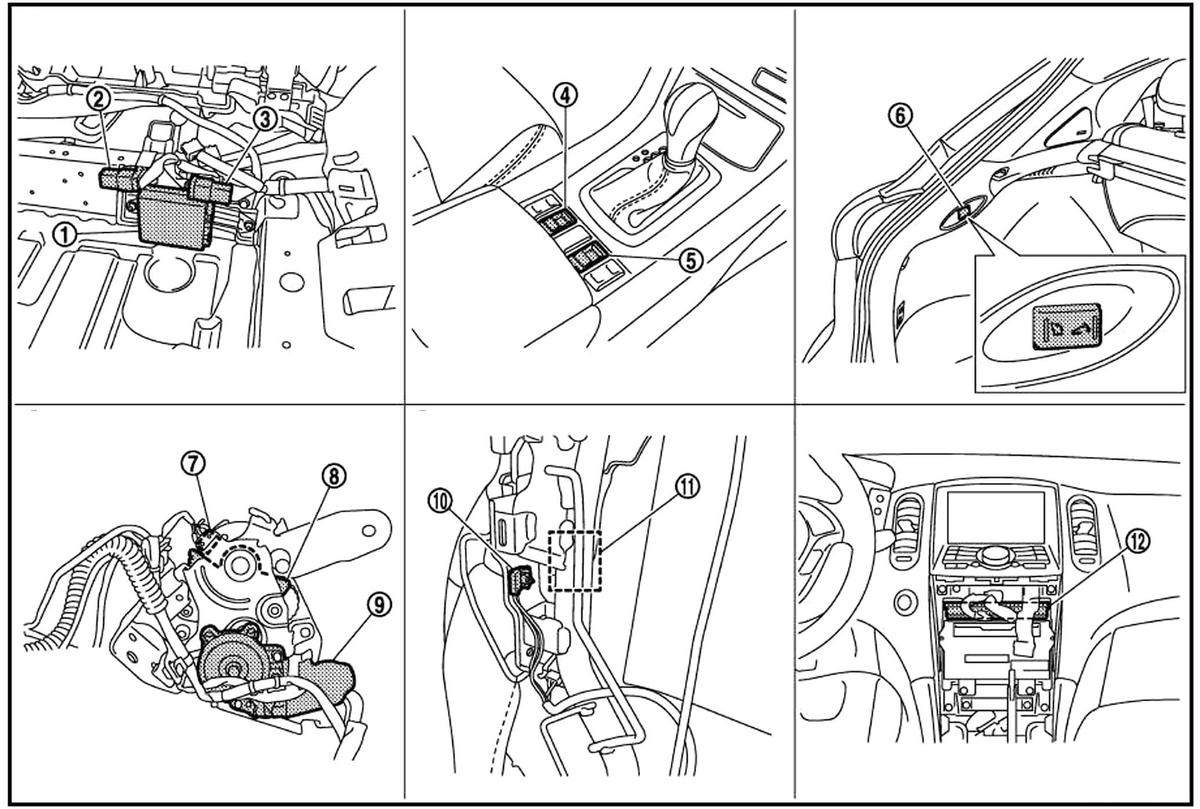

| Rear Seat Back Power Return Control Unit (1) | Behind right side of rear seat. See Figure. |
| Remote Keyless Entry Receiver (M104) | Left side of dash. See Figure. |
| Sonar Control Unit (M47) | Center of dash. See Figure. |
| TCM (Transmission Control Module) (F151) | Right front of engine compartment. See Figure. |
