Exploded View: Removal

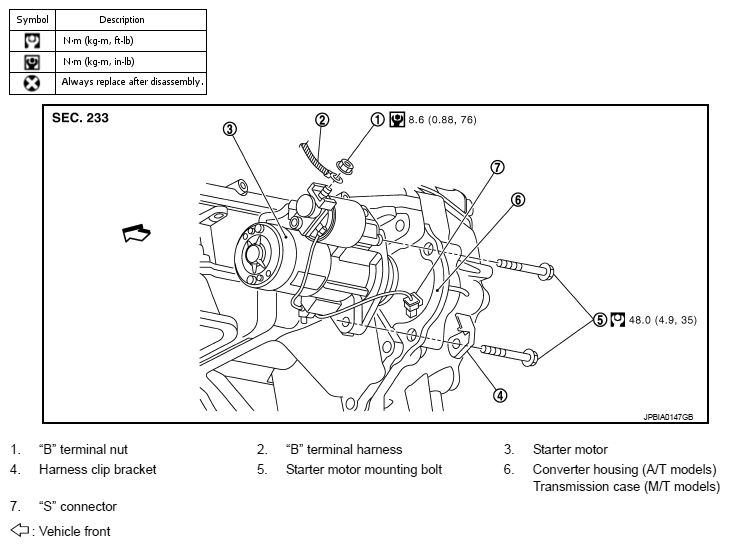

Fig 1: Starter Motor Replacement Components With Torque Specifications
G05972984Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols in the figure.
