Component Parts Location

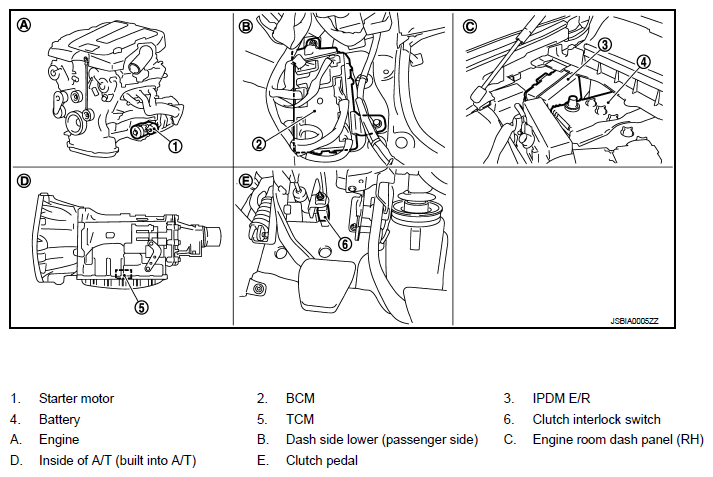

Fig 1: Identifying Starting System Component Parts Location
G05972978Courtesy of NISSAN MOTOR CO., U.S.A.
