G37 Base, 2D Convertible
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transmission -- Convertible
>>
Removal And Installation
>>
Paddle Shifter
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

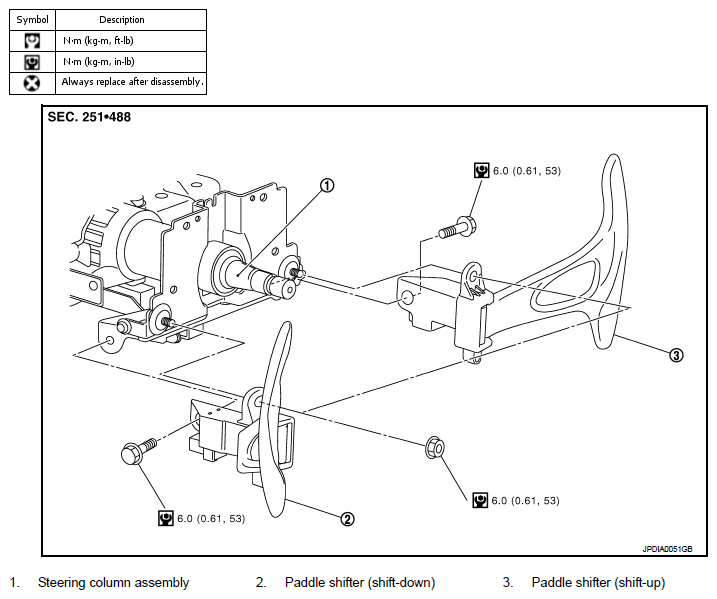

Fig 1: Exploded View Of Paddle Shifter With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
