Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Audio, Visual & Navigation System
>>
With Mobile Entertainment System
>>
Function Diagnosis
>>
Rear View Monitor System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

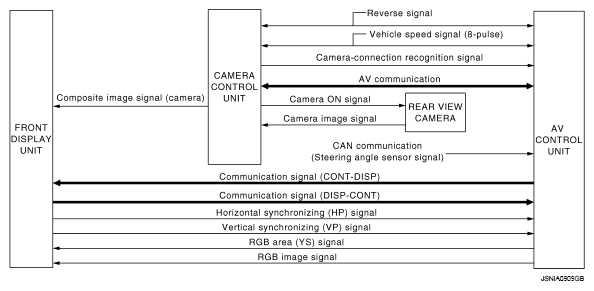

Fig 1: Rear View Monitor System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
