Component Structure

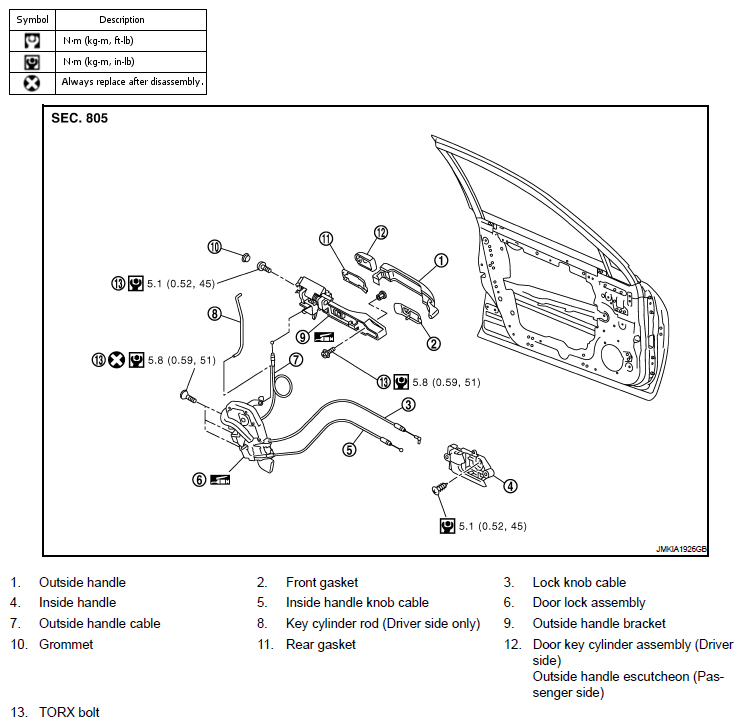

Fig 1: Exploded View Of Front Door Lock With Torque Specifications
G06309093Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENT " for symbols in the figure.
