Intelligent Key System: Schematic

NOTE: For PG-Power, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

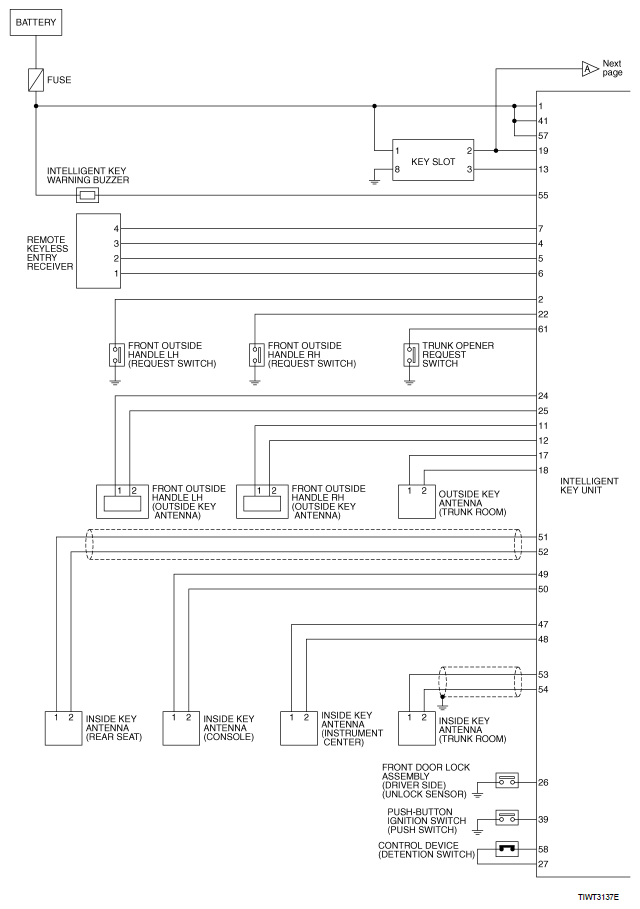

Fig 1: CAN Communication Unit Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: CAN Communication Unit Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
