Combination Meter: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector and clamp.

  Fig 1: Identifying Combination Meter Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter with the 4 screws.
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Install the wire harness to the finish panel slots.
2. Connect the connectors and clamps.

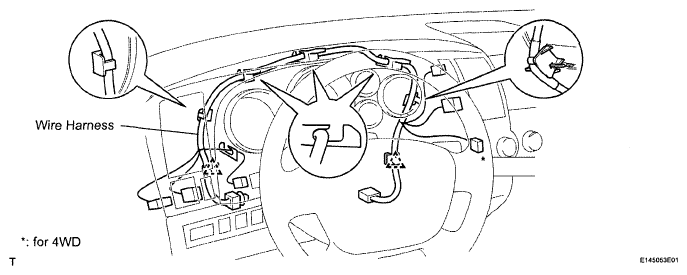

  Fig 3: Identifying Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 12 clips to install the finish panel.
Fig 4: Identifying Connectors And Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
