Removal and Installation: Notes

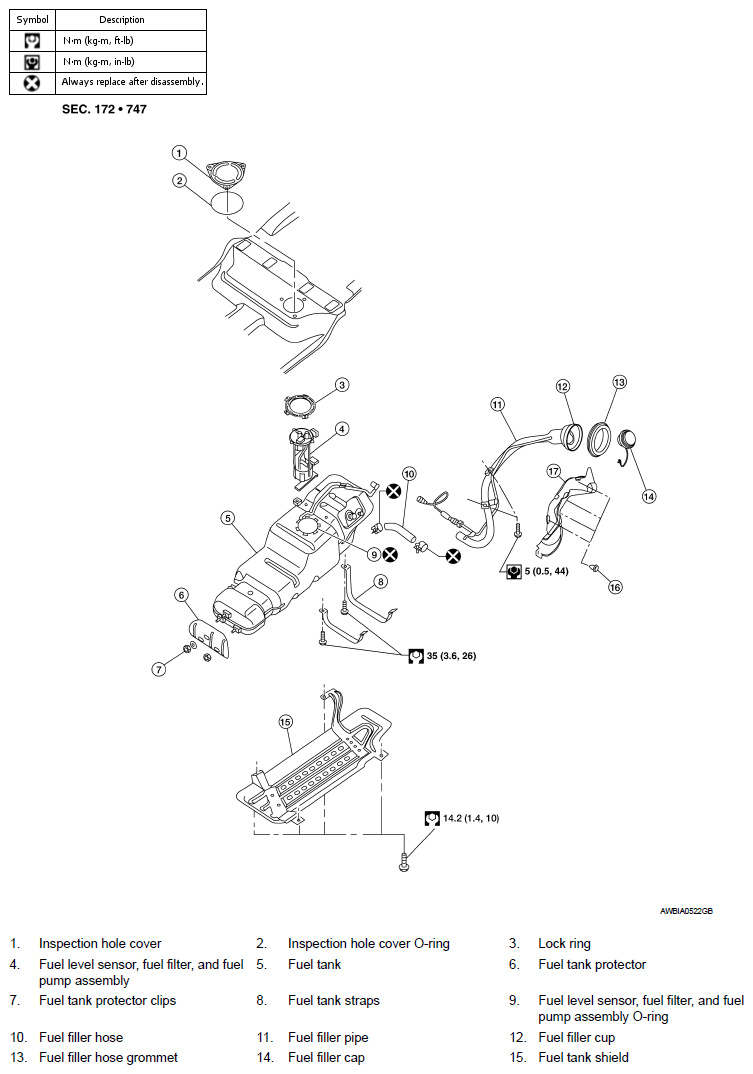

Fig 1: Fuel Tank Replacement Components With Torque Specifications
G06316000Courtesy of NISSAN MOTOR CO., U.S.A.
