Lubrication Circuit

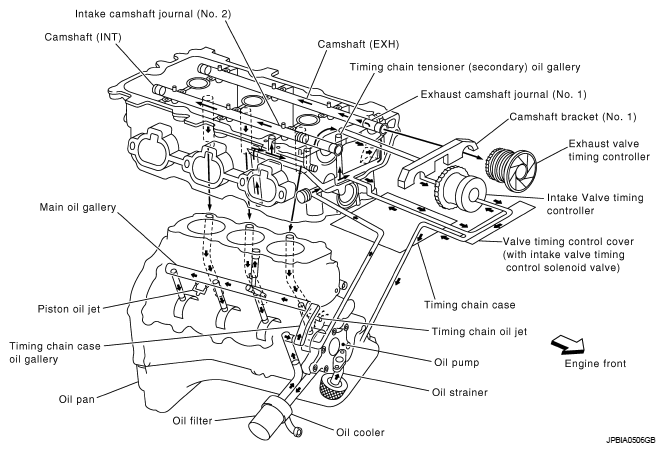

Fig 1: Lubrication System Lubrication Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
