Engine Control System - DTCS U0101 To P0159
>>
DTC P0112, P0113 IAT Sensor
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
DTC P0112, P0113 IAT Sensor: Wiring Diagram

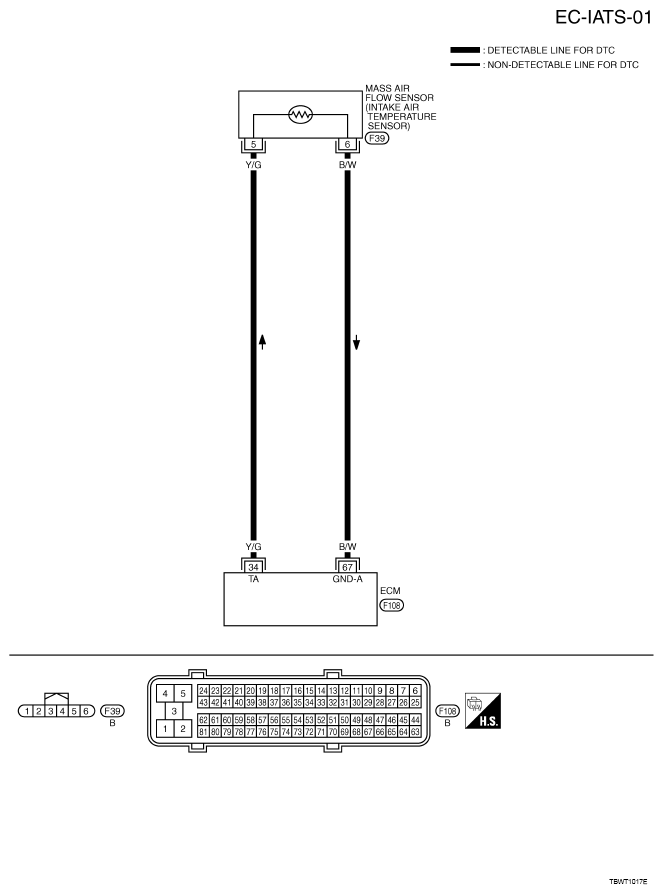

Fig 1: Wiring Diagram - EC-IATS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
