Component Parts Location

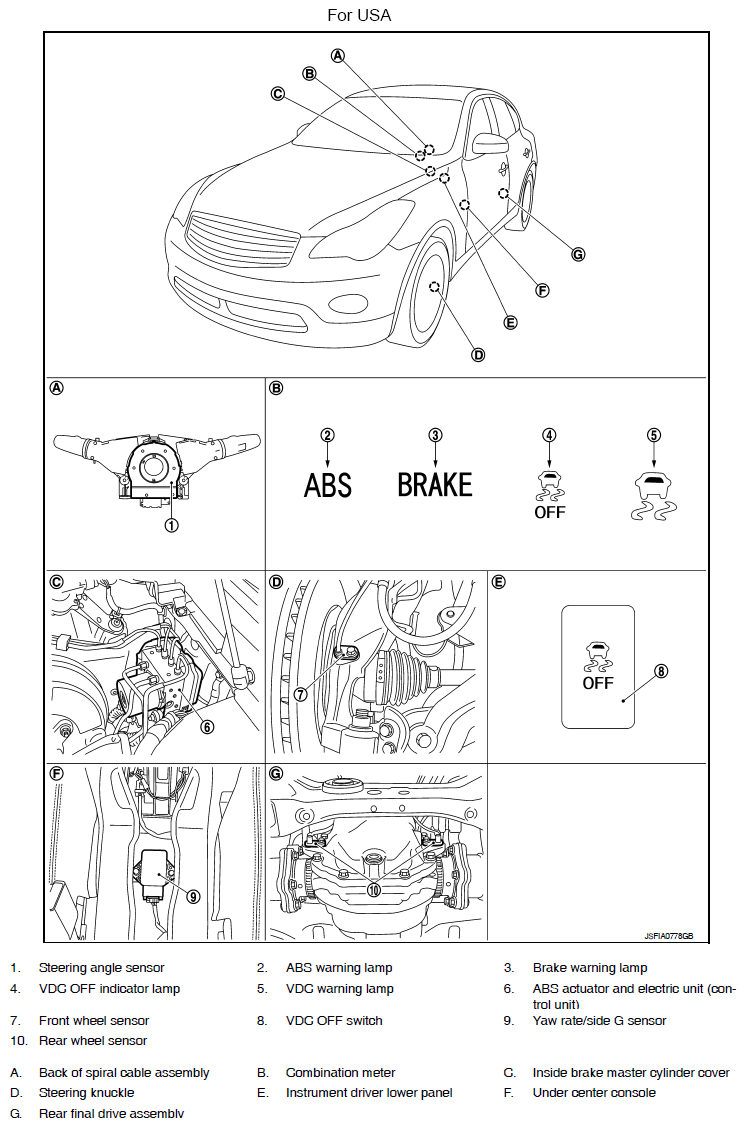

Fig 1: Identifying TCS Components Location (For USA)
Courtesy of NISSAN MOTOR CO., U.S.A.

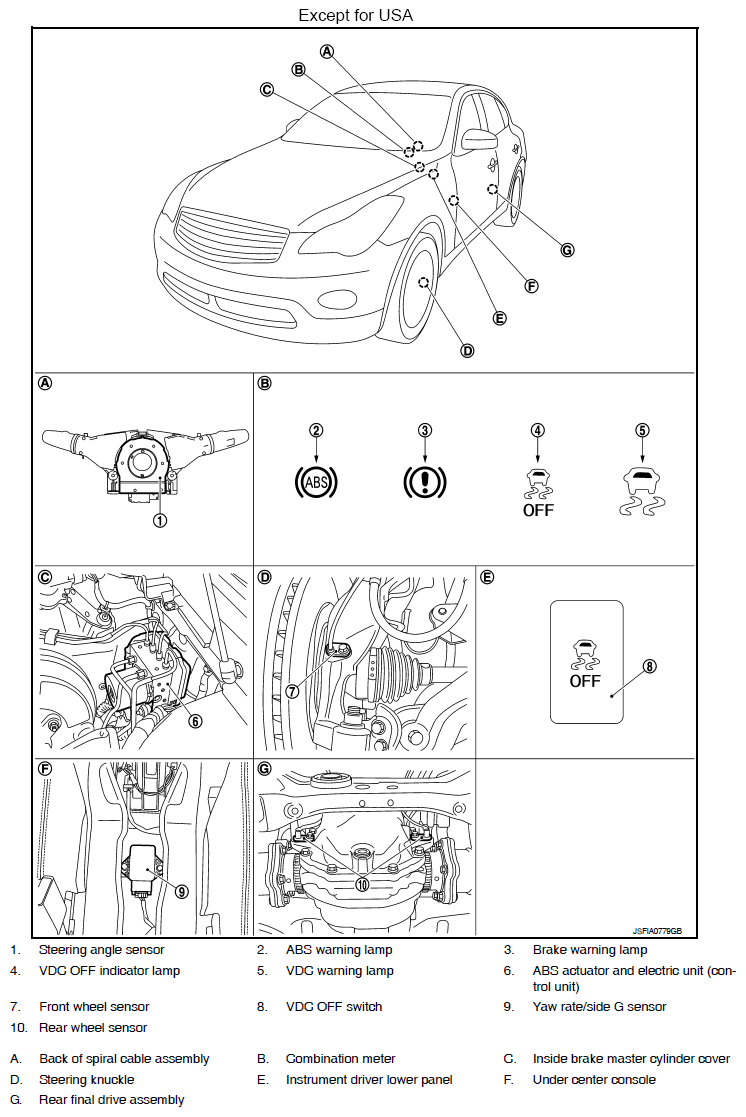

Fig 2: Identifying TCS Components Location (Except USA)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
