Exploded View

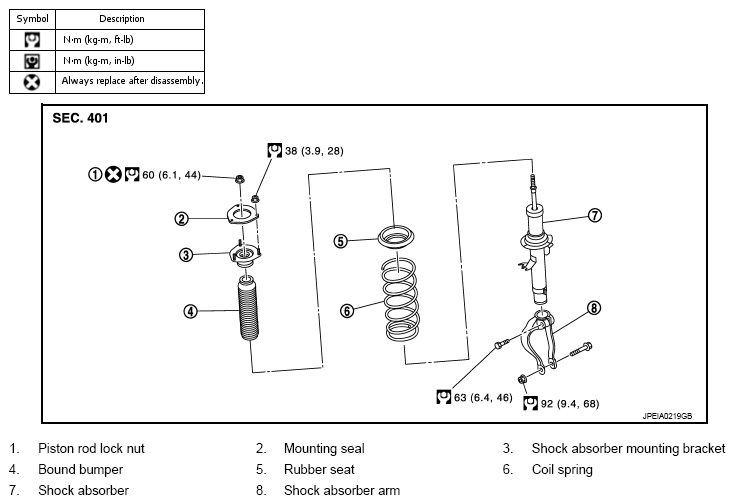

Fig 1: Front Coil Spring And Shock Absorber Replacement Components With Torque Specifications
G07164198Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
