Shift Change

The clutch is controlled with the optimum timing and oil pressure by the engine speed, engine torque information, etc.

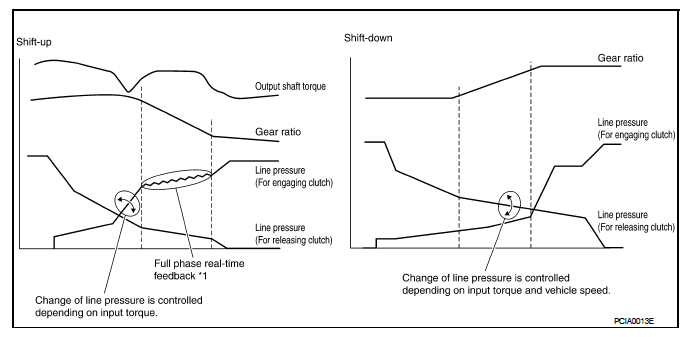

Fig 1: Shift Change System Diagram
G07165235Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Full phase real-time feedback control monitors movement of gear ratio at gear change, and controls oil pressure in real-time to achieve the best gear ratio.
